21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080

    Buy cheap 21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080 from wholesalers

    Buy cheap 21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080 from wholesalers
    • Buy cheap 21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080 from wholesalers
    • Buy cheap 21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080 from wholesalers
    • Buy cheap 21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080 from wholesalers

    21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080

    Ask Lasest Price
    Brand Name : Touch China(ODM/OEM)
    Payment Terms : T/T
    Model Number : 6826
    Certification : ccc,CE,Rohs,FCC
    Price : Negotiable
    Supply Ability : 20pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080

    21.5inches Thinner Capacitive Optical Bonding Touch Screen 1920X1080


    21.5inches Resolution 1920 x 1080 thiner Capacitive optical bonding touchscreen


    Product description

    Optical bonding technology is using OCR or OCA to bond LCD and touch panel without air gap.


    Product Specification

    CategoryItemsExplain
    LCD PANLEScreen Size21.5 inch
    Aspect ratio16:09
    Resolution1920×1080
    Visible Area(H)476.064mm×(V)267.786mm
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Contrast Ratio3000:01:00
    Response Time13/5 (Typ.)(Tr/Td); 20 (Typ.)(G to G) ms
    Colors D8Bit 16.7M , 72% NTSC
    Scanning Frequency60Hz
    InterfaceLVDS(See 1.2 for details)
    Operation Voltage5V
    BacklightBack light SourceWLED
    Center Luminance of White350cd/
    Operating LiftMin. 30K hours
    Operation Voltage58V~65V (for reference)
    Operation CurrentTyp current:240ma
    BLU Power consumptionMax. 10.6W(for reference)
    Touch ScreenTouch Screen Type10 point G+G capacitive touch panel
    Touch ModeFinger or capacitor pen
    Response Speed10ms
    Reported Rate100Hz
    Resolution≥4096×4096
    Touch TimesDurable single-point≥30 million times
    InterfaceUSB
    Working VoltageTypical value+5VDC
    Glass ThicknessTotal 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm)
    Surface TreatmentNO
    Surface DurabilitySurface hardness equals glass, Moh's hardness level≥7
    Transmittance≥85%
    Bonding methodBonding WayOptical bonding
    Adhesive MaterialOCA
    Thickness0.175mm
    Size and packagingModele Size(W)525mm×(H)312mm×(T)13 mm
    Net Weight3.84KG
    Use environmentWorking Temperature0~+50
    Storage Temperature-20~+60
    Working Humidity≤85%RH(non-condensing)
    Storage Humidity≤85%RH(non-condensing)

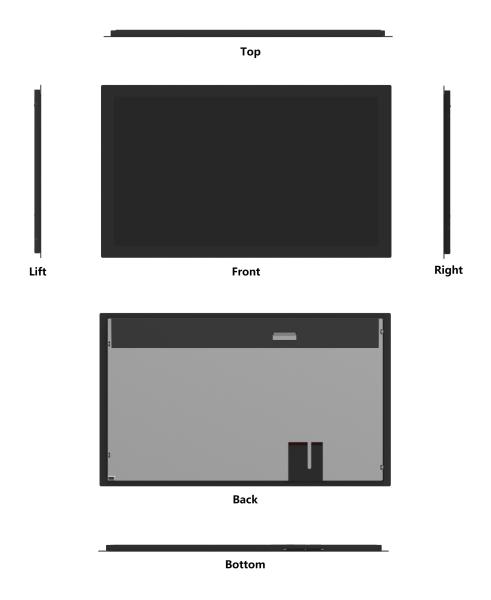

    Technical drawing:


    Delivey date:

    Samples in stock: 1~3 working days

    Customized project: 10~15days for samples

    Mass production: 10~18days


    Company Advantages


    21 years' professional experience in G+G / G+F+F touch solution.
    Wide range of standard sizes up to 86” now.
    A strong research team for both software and hardware and provide good pre-sales and after-sales service.
    A complete ecological chain related to intelligent touch display products, from AG glass material - cover glass - capacitive touch panel- optical bonding with LCD display.
    In-house touch sensor development and optical bonding technology.
    In-house controller PCB development based on the newest controller generations.
    Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink.
    Perfect adaptation to customers' requirements.
    Own industrial parks, good guarantee for product quality and lead time.
    IC solutions: Goodix, Atmel, Cypress, ILITEK, EETI, WEIDA,Silicon works etc.
