    8 Inch Explosive Proof Custom Capacitive Touch Panel With Curved Cover Glass

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-5443
    Certification : CE, RoHS, REACH
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 120K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    8 Inch Explosive Proof Custom Capacitive Touch Panel With Curved Cover Glass

    8 Inch Explosive Proof Custom Capacitive Touch Panel With Curved Cover Glass
    Description
    This touch panel is with AG anti explosive film. It can make the touch panel stronger and can also have anti glare feature.
    Parameters of the touch panel
    Size:8inch
    Total Thickness:2.0±0.2mm
    Outline of Cover Lens:196.7*152.71±0.1mm
    Outline of ITO Sensor:180.92*126.19±0.2mm
    Viewing Area:174.24*98.96±0.2mm
    Active Area:175.24*99.96±0.3mm

    TP Structure:

    F+G+G
    Controller:Goodix 928
    Cover glass thickness:0.7mm
    Cover glass treatments:AG, AR, AF (Optional)
    CTP interface:I2C
    Operating system:Android, Linux
    Working temperature and humidity-30°C~80°C,20~85% RH, non-condensing
    Storage environment and humidity :-40°C~85°C, 20~85% RH, non-condensing
    Transparency85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, RoHS, REACH
    Aspect ratio:16:9
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Ball drop test standard227g, 100cm for 3 times
    Warranty:1 Year

    Reliability test conditions


    Touch Panel Reliability Test Condition

    1. Set the initial temperature to be 25℃

    2. Ramp to 70℃at 90% RH, 2H

    3 .Soak at 70℃at 90% RH, 2H

    4. Ramp from 70℃at 90% RH to -20℃, 4H

    5. Soak to -20℃, 2H

    6. Ramp from -20℃to 25℃, 2H


    ConditionTemp.HumidityTime
    Initial condition25℃//
    Ramp to 70℃70℃90%2H
    Soak70℃90%2H
    Ramp to -20℃-20℃/4H
    Soak-20℃/2H
    Ramp to initial temperature25℃/2H
    12H for each cycle(from step 1 to 6), total 28 cycles.Duration of one circle12H

    FAQ


    1. What’s your lead time?

    Re: The lead time for both samples and mass production is 15 days.


    2. Are you a trading company or manufacturer?

    Re: We are a manufacturer.


    3. What kind of products can you provide?

    Re: We can provide capacitive touch panel from 3.5” to 86” and optical bonding products.


    4. How to deal with the defective touch panel after they are shipped.

    Re: First, we will make clear what the issue is. Usually the issue can be solved by either remote testing or sending back representative defective touch panels.


    5. What kind of certificates do you have?

    Re: We have ISO9001:2015 and IATF16949:2016 certificates.

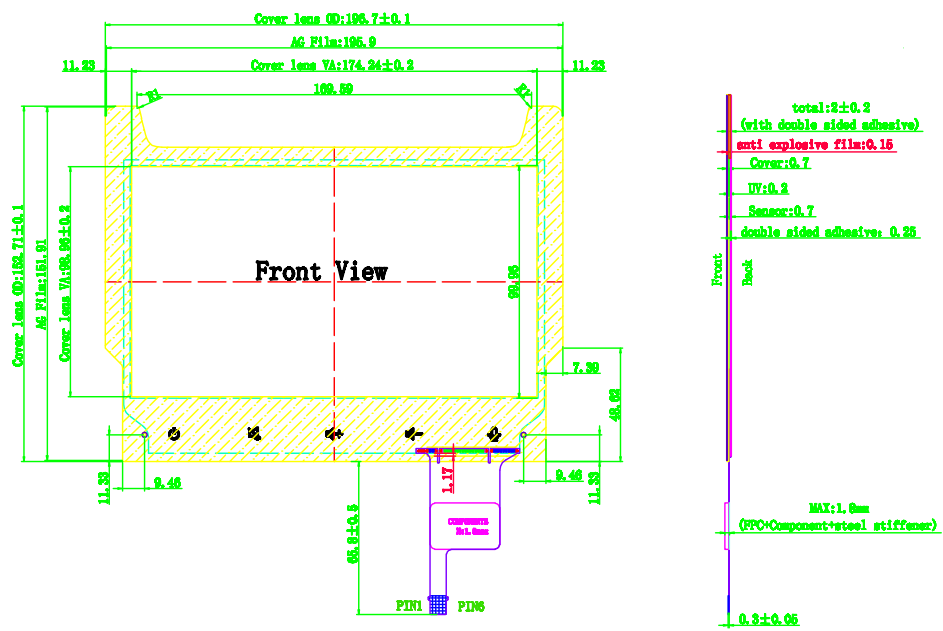

    Engineering drawing




    Package


    There are total 60pcs in each package.


    Shipments



    Quality 8 Inch Explosive Proof Custom Capacitive Touch Panel With Curved Cover Glass for sale
