    Wall Mounted 2K Capacitive Touch Screen Display Open Frame 55 Inch

    Ask Lasest Price
    Brand Name : Touch-China/OEM
    Model Number : ZCK-5500MT
    Certification : CE/ROHS/FCC/CCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, T/T
    Supply Ability : 5K per month
    Delivery Time : Samples 1-3working days, mass order depend on qty
    • Product Details
    • Company Profile

    Wall Mounted 2K Capacitive Touch Screen Display Open Frame 55 Inch

    Wall Mounted 2K Capacitive Touch Screen Display Open Frame 55 Inch


    Description:


    1. Touch Screen Optional (Capacitive, Resistive, Infrared Touch).


    2. VGA / HDMI / DVI / BNC / AV / USB Interface Optional.


    3. Industrial Panel, IPS Panel, High Brightness Panel Optional.


    4. Different Screen Sizes 10inch-43inch Optional.


    5. No Frame (SKD), Metal Case, White Color Optional


    6. Operating system: Support Windows / Android / Linux / MacOS


    7. Desktop, Wall Mount Optional.


    8. Customized Service.



    LCD

    Panel

    Screen Size55inch
    Aspect Ratio16:9(H:V)
    Resolution1920×1080
    Viewing Angle85/85/80/80 (Typ.)(CR≥10)
    Visible Area(H)1209.6mm×(V)680.4mm
    Center Luminance of White300cd/m²
    Contrast Ratio1000:1 ref.
    Response Time6(Typ.)(Tr/Td) ms
    Display Colors8/10Bit 16.7M, 72% NTSC
    Scanning Frequency60Hz
    Back light SourceWLED
    Operating Lift30K hours

    Touch

    Screen

    Touch Screen Type10 point Capacitive touch panel
    Touch Mode

    Finger or capacitor pen

    (The smallest diameter of touch object 5mm)

    Response Speed10ms
    Reported Rate100Hz
    Resolution≥4096×4096
    Touch TimesDurable single-point≥30 million times
    InterfaceUSB
    Working VoltageTypical value+5VDC, Allowance range+4.75V~+5.25V
    Glass ThicknessTotal 4.3mm±0.2(Cover3mm+UV0.2mm+Senser1.1mm)
    Surface TreatmentNO
    Surface DurabilitySurface hardness equals glass, Moh's hardness level≥6
    Explosion-Proof227g±2g, 100cm, No damage after theimpact at the central area for once.
    Transmittance≥85%
    LCD and TP BondingBonding WayAir bonding
    Adhesive MaterialDouble faced adhesive tape (3M)
    Thickness0.5mm

    Interface

    Function

    HDMI in×1 (Support standard resolution within 1920×1080)
    DVI inOptional (Support standard resolution within 1920×1080)
    VGA in×1 (Support standard resolution within 1920×1080)
    Display Port inNO
    USB×1 (USB2.0 For Touch)
    Power in×1
    Key button5Key Optional(ON/OFF, LIFT, RIGHT, MENU, AUTO)
    Brightness RegulationSupporting 100-level brightness adjustment
    LanguageSimplified Chinese, English, French, Italian, Russian, Spanish, German, Portuguese

    Power Supply

    ( Built-in)

    Voltage RangeAC in:110V~220V
    Standby Power Consumption≤2W
    Maximum Power Consumption≤80W
    Safety StandardsUL60950-1,IEC60950,EN60950-1,GB4943
    EMC StandardEMC --- EN55022/EN55024/GB9254(CISPR 22) /GB17625.1
    EMI StandardFCC Part 15B
    Appearance and packagingFace Frame MaterialAluminum Plate
    Back Shell MaterialIron Plate
    Waterproof LevelFront panel IP63
    Mounting HolesVESA 400mm×400mm mounting hole on back cover
    Machine Size1284.9mm×755.9mm×86.3mm
    Net Weight40KG
    Gross Weight50KG

    Environmental

    Science

    Working Temperature0℃- 50℃
    Working Humidity20% - 85%RH
    Storage Temperature-20℃ - 60℃
    Storage Humidity20% - 85% RH
    Standard AttachmentHDMI cable, USB-Touch cable, Power cable
    AuthenticationCE, FCC
    Warranty1years(Non-man-made damage)

    Product details photo for reference

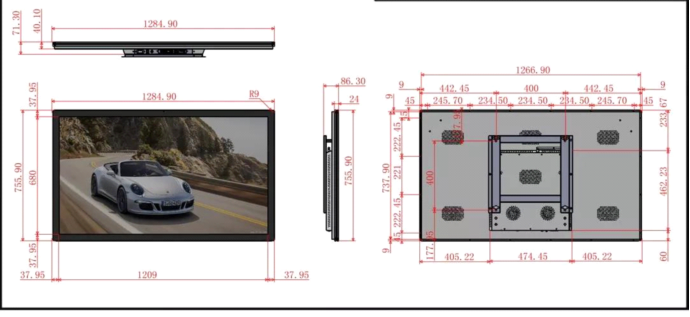

    Product drawing for reference:
