    22Inch 6.0mm USB Industrial Touch Panel Multiple Capacitive Points

    Ask Lasest Price
    Brand Name : OEM/ODM/TOUCH-CHINA
    Model Number : ZCC-XXXX
    Certification : CE/ROHS/FCC/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100K per month
    Delivery Time : 1-3 working days for sample;10-15 working days for bulk order
    • Product Details
    • Company Profile

    22Inch 6.0mm USB Industrial Touch Panel Multiple Capacitive Points

    22Inch 6.0mm USB Industrial Touch Panel Multiple Capacitive Points


    Industrial grade need support 7×24hours continual working, to meet such a high

    request, our touch panel will use more better materials and IC solutions, pass

    more strict test standard.


    Specification sheet:


    Item

    Standard projected capacitive touch panel with controller (interface:USB)

    1Item NO.ZCC-XXXX
    2Detection methodProjected Capacitive
    3Size21.5/22INCH
    4working areaSee drawing for details
    5Outline dimensionSee drawing for details
    6Resolution2048*2048(1024*1024)
    7Input methodFinger or capacitive touch pen
    8Touch action force30~60g
    9Input Voltage5V adjustable
    10Operating current2.5~10mA Depends on IC
    11Operating temperature-20°C~60°C
    12Storage temperature-30°C~70°C,<90%RH;
    13Humidity10%~90%RH at 40°C, non-condensing
    14Relative humidity10%~90%RH at 40°C, non-condensing
    15Response time<8-10ms
    16Transparency≥85% depends on the quantity of layers
    17Surface hardness≥6H
    18Material structureG+G
    19Thickness2.0/3.0/4.0/5.0/6.0mm
    20Light transmission90%~100%
    21DurabilityScratch-free; More than 50,000,000 touches in one location without failure
    22Drivers availableAndroid,Windows,Linux,Mac
    23CertificatesCE, FCC, RoHS, CCC
    24Working environmentUnder sunlight,indoor and outdoor
    25Finger Touch life≥35,000,000 times
    26Warranty1 year

    Application range


    ■ Industrial tablet PC
    ■ Home appliances
    ■ Portable sport devices

    ■ Access control terminals
    ■ Portable medical devices

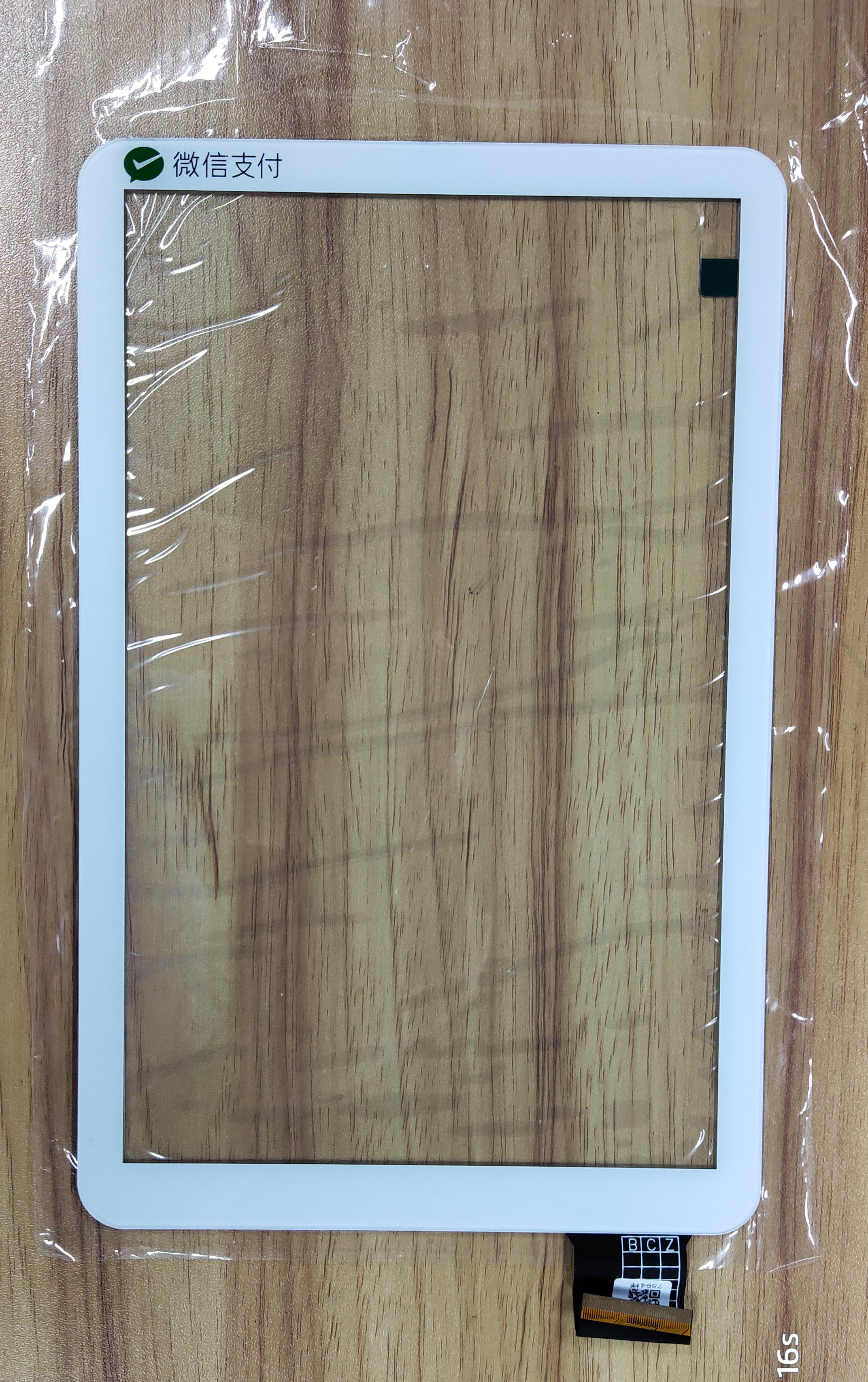

    Front side for example:


    Back side for example:

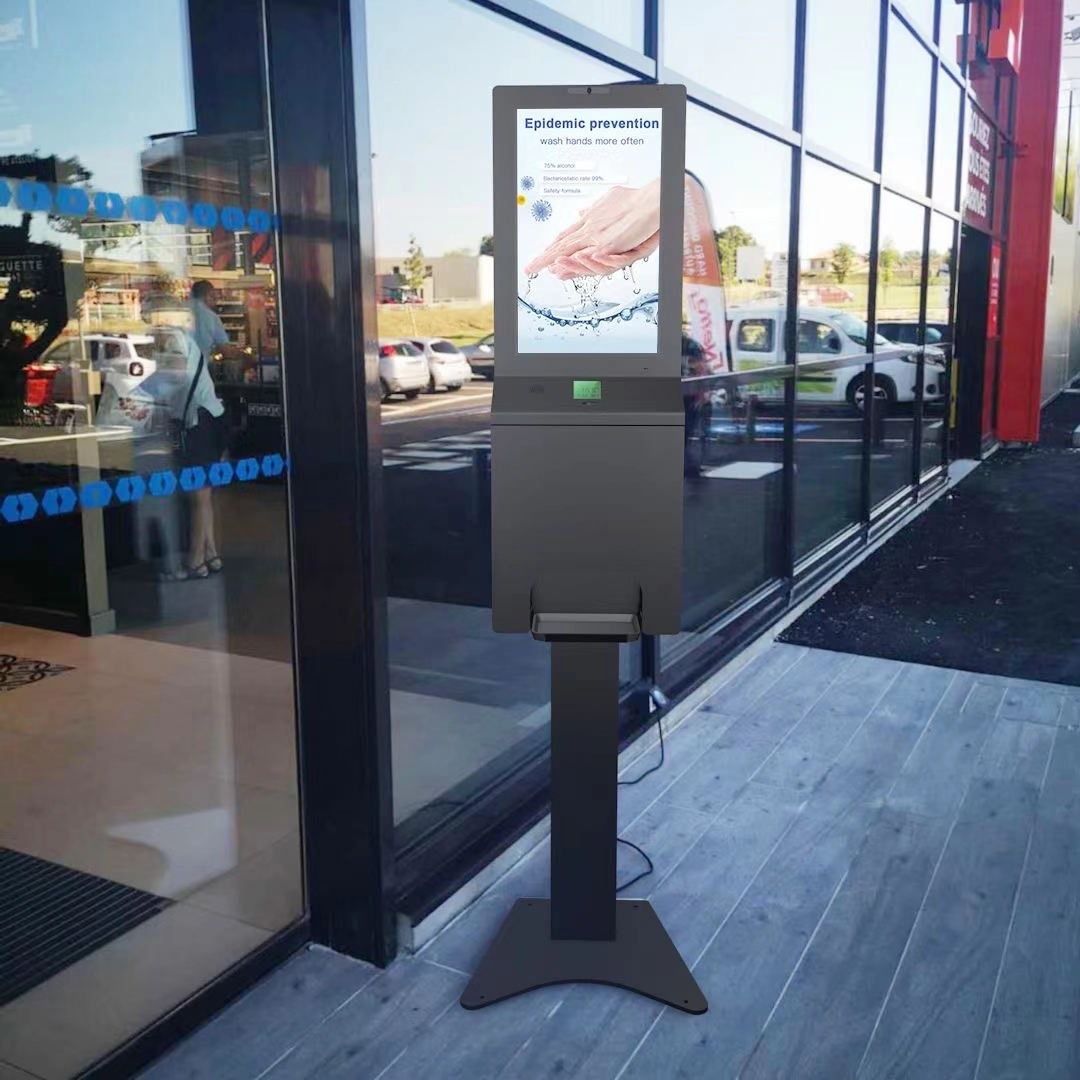

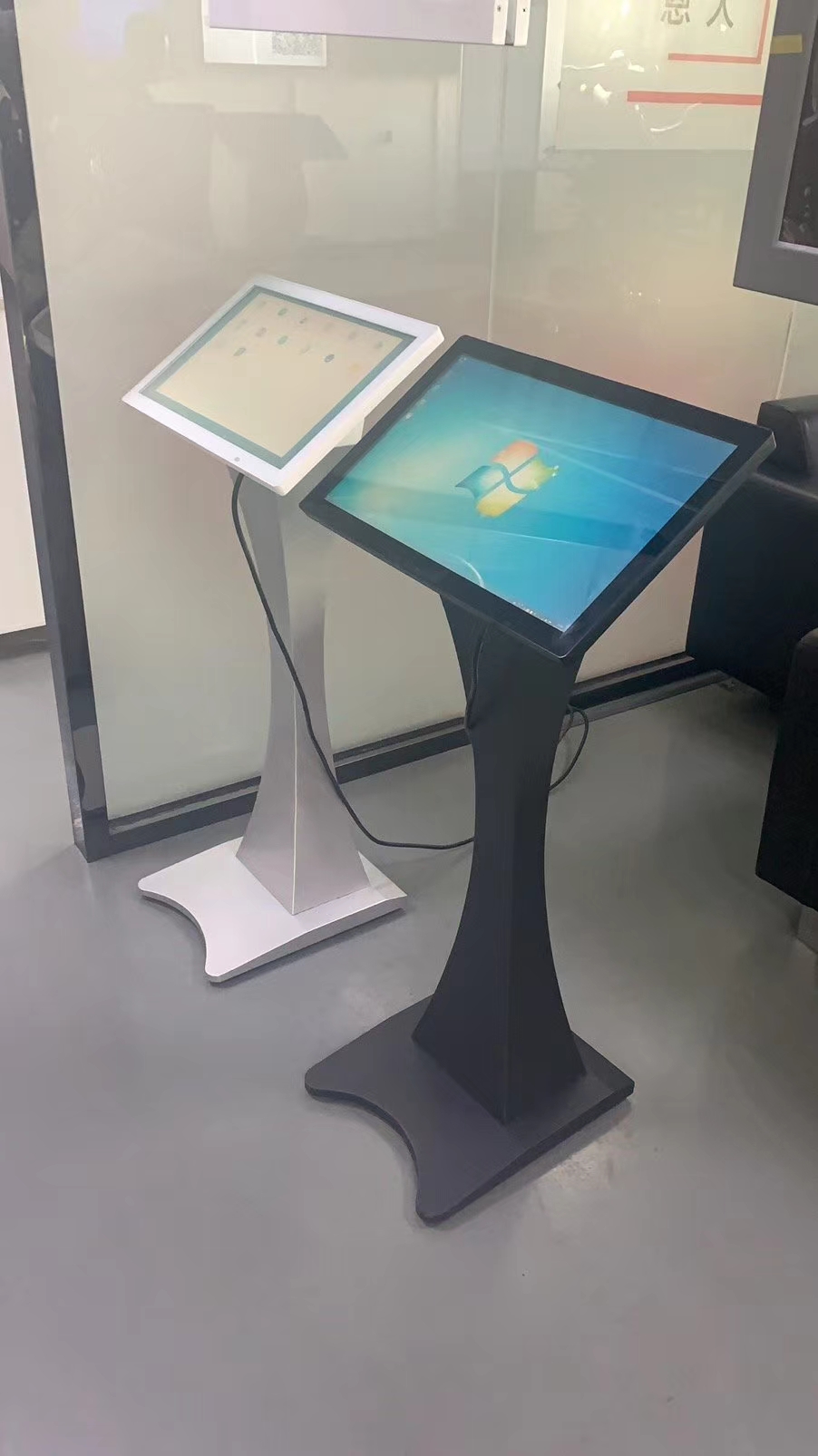

    Part of our touch panel for actual application:

    Part Of Durability Test ref.

    Panel-SlideTest 250g, 20mm,100,000 times

    Hitting life 35,000,000 times
    Test process with advanced machine ref.
    22Inch 6.0mm USB Industrial Touch Panel Multiple Capacitive Points

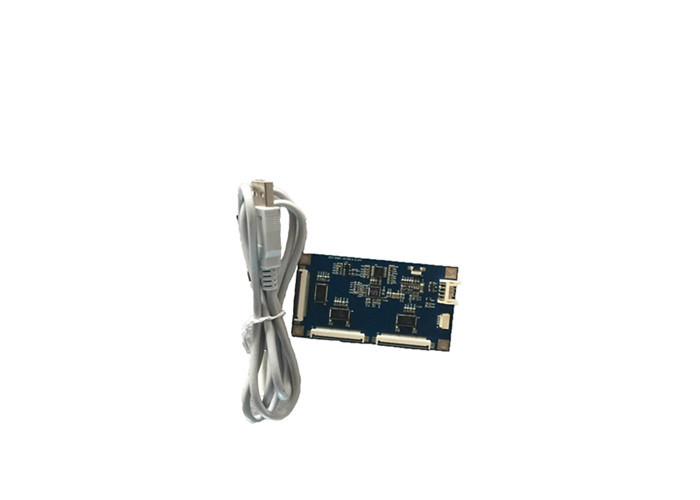

    IC solutions--Use the ILITEK, EETI, ELAN and CYPRESS controller
    22Inch 6.0mm USB Industrial Touch Panel Multiple Capacitive Points

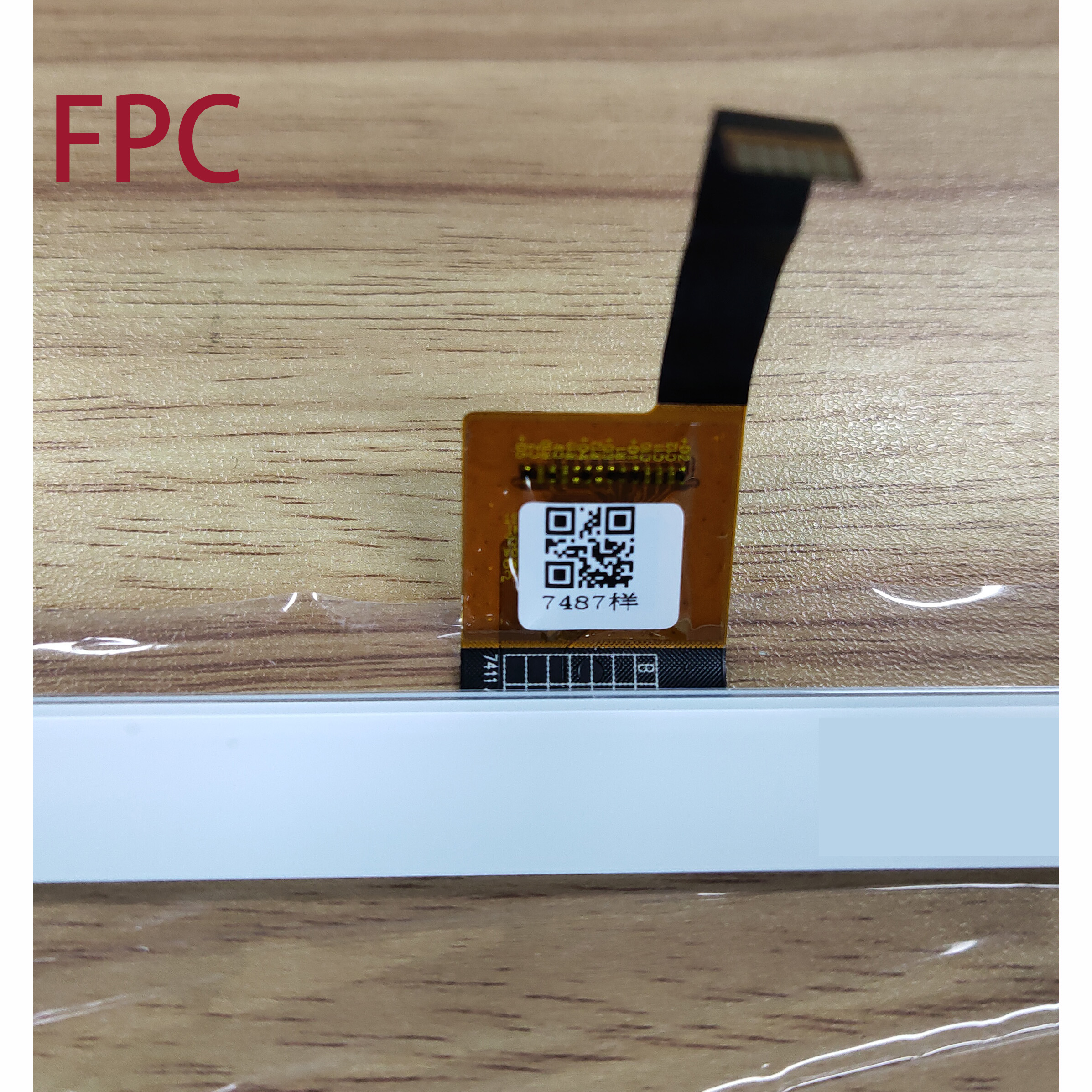

    FPC style for example:
    Standard export package--Packaging flow Diagram
    Put 2pcs inside a box, each piece is separated by a piece of expandable
    polyethylene(EPE). Make sure FPC is not twisted and protective film remains
    smooth(Picture1).
    Put two boxes into a large carton, fill the empty space with expandable polyethylene
    (EPE) (Picture2).

    FAQ


    Q: Are you trading company or manufacturer ?

    A: We are over 21years factory.

    Q: What do I need to offer to get a quote ?

    A: Please offer 2D or 3D drawings (material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or sample.

    Then we will quote the best price within 24hours.

    Q: Do you provide samples? is it free or extra?

    A: Yes, we could offer the sample.After price confirmation, you can require for samples to check our quality.

    Q: How long is your delivery time?

    A: Generally it is 5-10 working days if the materials are in stock. or it is 10-15 working days if materials are not in stock, it is according to quantity.
