Weida 8913 Controller 18.5 Inch 1.1mm Industrial Touch Panel
Description
The capacitive touch panel is usually made of two layers or more.
The basic layer is the sensor, the other layer is the cover glass
on the top. Both the sensor and cover glass can be customized based
on customers’ detailed requirements. The normal structures can be
G+G, G+F, G+F+F, P+G+G etc. Capacitive touch panel is different
from resistive touch panel, when the touch panel is touched,
people’s capacitance can be sensed by the touch panel. Then the
chip can distinguish where the touch is.
Parameters of the touch panel
| Size: | 18.5inch |
| Total Thickness: | 2.4±0.3mm |
| Outline of Cover Lens: | 446.05*271.18±0.3mm |
| Outline of ITO Sensor: | 427.1*249.68±0.3mm |
| Viewing Area: | 408.6*229±0.3mm |
| Active Area: | 412.8*233.4±0.3mm |
TP Structure: | G+G |
| Controller: | Weida 8913 |
| Cover glass thickness: | 0.7mm,1.1mm,2mm,3mm,4mm,5mm,6mm (optional) |
| Cover glass treatments: | AG, AR, AF (Optional) |
| CTP interface: | USB |
| Operating system: | Android, Linux, XP, Win7, Win8, Win10 |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, RoHS, REACH |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Ball drop test standard | 227g, 100cm for 3 times |
| Warranty: | 1 Year |
Advantages of Touch-China
1. We have a strong RD and manufacturing team.
2. We have 20 year experience in touch panel field. We are
experienced to provide solutions to various touch panels.
3. We have good resources of the raw materials, which make us
capable of delivering the goods at stable cost and on time.
4. We can provide adhesive and optical bonding solution. Customer
can provide the LCD or we can buy the LCD directly.
Project proceeded steps
1. Receipt of customer’s RFQ ( detailed requirements of the touch
panel, qty. Needed etc.)
2. Evaluate the drawing and offer the redesigned drawing and
quotation to the customer.
3. Confirm the drawing and quotation.
4. Go ahead with sample manufacturing
5. Samples’ testing and confirmation of samples
6. Mass production
7. Shipment, follow up with the feedback of mass production.
FAQ
1. What’s your lead time?
Re: The lead time for both samples and mass production is 15 days.
2. Are you a trading company or manufacturer?
Re: We are a manufacturer. We can provide both OEM and ODM service.
3. What kind of products can you provide?
Re: We can provide capacitive touch panel from 3.5” to 86” and
optical bonding products.
4. How to deal with the defective touch panel after they are
shipped.
Re: First, we will make clear what the issue is. Usually the issue
can be solved by either remote testing or sending back
representative defective touch panels.
5. How many people are there in your factory?
Re: There are about 500 people in our factory.

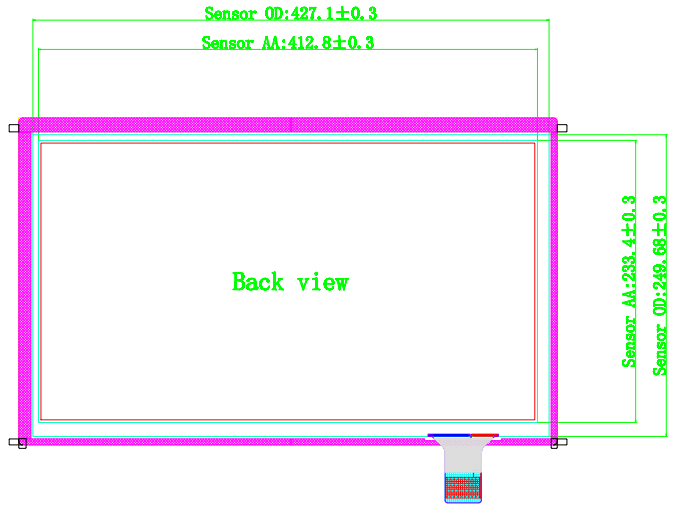

Engineering drawing
