15 Inch G+G 4:3 ratio customized AG/AF/AR projected capacitive
multi touch screen panel
Product Specification:
| Size: | 15inch |
| Total Thickness: | 4.3±0.3mm |
| Outline of Cover Lens: | 339.94*263.94±0.3mm |
| Outline of ITO Sensor: | 321.4*247.38±0.3mm |
| Viewing Area: | 304.7*228.7±0.3mm |
| Active Area: | 308.1*232.1±0.3mm |
TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, EETI, Silicon Works etc.(Customized) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized) |
| Cover glass treatments: | AG, AR, AF, AE (Customized) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 4:3 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Advantages of Touch-China:
1. We have 23-year experience in designing and manufacturing touch
panels.
2. We have a strong research team for both software and hardware
and provide before and after-sale service.
3. We cooperate with excellent customer and suppliers.
4. We have long-term cooperation with excellent IC suppliers all
over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile
are in a leading position in touch panel industry.
Capacitive Touch Screen:
Capacitive touch screen is very different from traditional
resistive touch screen. When the resistive touch screen works, you
can only judge a touch point. And if there are two or more touch
points, you can not make the right judgments. So the resistive
touch screen applies only to judge a few simple actions such as
click, drag and drop. The capacitive multi-touch screen can
decompose the user's touch into collecting multi-point signal and
determining the significance of the signals, and complete the
judgments of complex action. Moreover, you can feel it when you
lightly touch the projected capacitive touch sensor panel. Better
durability, more than 90% light transmission rate, high
transparency than the traditional resistive touch screen are the
advantages of our products.
Project proceeded steps:
1. Receipt of customer’s RFQ ( detailed requirements of the touch
panel, qty. Needed etc.)
2. Evaluate the drawing and offer the redesigned drawing and
quotation to the customer.
3. Confirm the drawing and quotation.
4. Go ahead with sample manufacturing
5. Samples’ testing and confirmation of samples
6. Mass production
7. Shipment, follow up with the feedback of mass production.

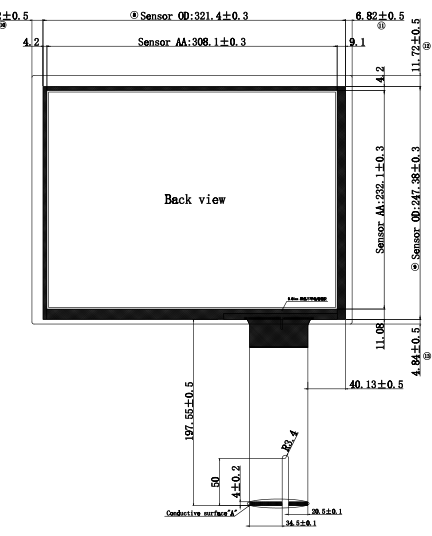

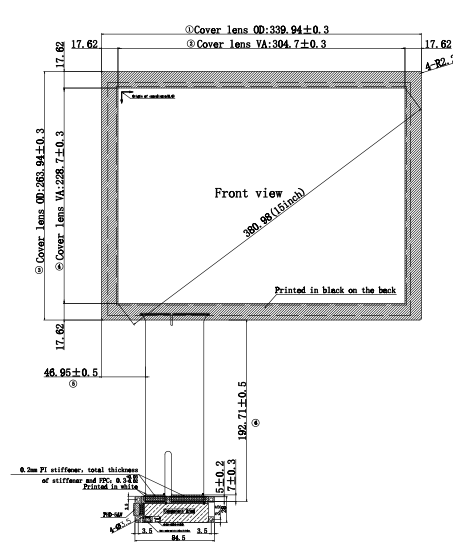

Technical Drawings:
