7 inch 10 points G+G COF CTP G070Y2-L01 LCD with OCR optical
bonding
Optical Bonding Introduction:
Optical bonding technology is using OCR or OCA to bond LCD and
touch panel without air gap.
Capacitive touch panel:
Capacitive Touch Panel is to use the working current of induction
of human body.The operational principle of the projected capacitive
touch panel: There are two layers of the ITO layer under the
surface of glass. This ITO layer respectively forms the electric
field of X axis and Y axis, which can keep balance by crossing the
surface of the class. Once the fingers approach the glass surface,
the fingers and the electrode X axis or Y axis will form a new
electric field, which can make the local capacitance change. Then
the controller will determine the location based on capacitance
changes.
Feature Of Touch Panel
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 86 inch (More large sizes products are developed
now)
4. Multi touch point
5. OS support:Windows 7/8/10, Android, Linux, XP, WCE
6. USB interface
7. Easy and excellent touch , no need pressure
8. High-speed response, Low power consumption
9. Water-proof and dust-proof,High-definition, anti-fog, long
service life
10. Small touch pressure, quick response, accurate touch, high
transmittance
Touch-China Service
OEM/ODM are workable
All of products can be customized according to customers' drawings,
and with customer's brand.
If you no drawing or sample, please let me know some information,
our engineer can help you to develop new items and make technical drawing .
Assembly Services
We can provide assembly services. We mainly manufacture touch
screen, also can make optical bonding / tape bonding between touch
screena and LCD display from 3.5 inch to 86 inch.
Delivery Time of Touch Modules:
- Samples in stock: 1~3 working days
- Customized project: 10~15days for samples
- Mass production: 10~18days
PCAP Touch Specification:
| Items | Parameters |
LCD Screen Size | 7 inch |
Aspect ratio | 4:3 |
Resolution | 800×480 |
Visible Area | (H)192.5mm×(V)132.5mm |
Viewing Angle | 40/50/60/70 (Typ.)(CR≥10) |
Contrast Ratio | 1000:1 |
Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms |
Colors D | 8Bit 16.7M , 72% NTSC |
Scanning Frequency | 60Hz |
Interface | LVDS(See 1.2 for details) |
Operation Voltage | 5V |
Back light Source | WLED |
Center Luminance of White | 400cd/㎡ |
Operating Lift of backlight | Min. 30K hours |
Operation Voltage | 41V~43.2V (for reference) |
Operation Current | Typ current:60ma |
BLU Power consumption | Max. 9.8W(for reference) |
Touch Screen Type | 10 point G+G capacitive touch panel |
Touch Mode | Finger or capacitor pen |
Response Speed | 10ms |
Reported Rate | 100Hz |
Resolution | ≥4096×4096 |
Touch Times | Durable single-point≥30 million times |
Interface | USB |
Working Voltage | Typical value+5VDC |
Glass Thickness | Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm) |
Surface Treatment | NO |
Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
Transmittance | ≥85% |
Bonding Way | Optical bonding |
Bonding Material | OCR |
Thickness | 0.6mm |
Modele Size | (W)192.5mm×(H)132.5mm×(T)13.87mm |
Net Weight | 2KG |
Working Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Working Humidity | ≤85%RH(non-condensing) |
Storage Humidity | ≤85%RH(non-condensing) |
G070Y2-L01 General specification:
Mechanical specifications:

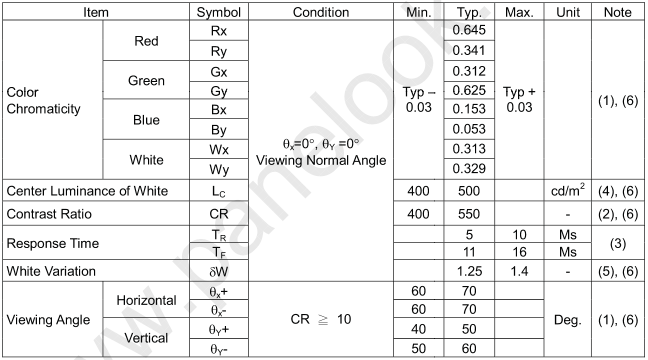

Optical specifications:
Test condition:
