    19 Inch PCAP Touch Panel Wear Resistance For Touch TFT LCD Monitor

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-4616
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10K per month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    19 Inch PCAP Touch Panel Wear Resistance For Touch TFT LCD Monitor

    19 Inch PCAP Touch Panel Wear Resistance For Touch TFT LCD Monitor


    Basic specification:

    Size19 inch
    Total thickness2.4±0.2mm
    Outline of Cover Lens421*346±0.3mm
    Outline of ITO Sensor393.62*320.34±0.3mm
    Viewing Area377.32*302.06±0.3mm
    Active Area380.32*305.06±0.3mm
    InterfaceUSB
    Input voltage5V
    Response time10ms
    Report rate100 HZ
    Input methodHand writing or capacitive pen
    Transmittance﹥85%
    Package list19 inch Touch panel,controller board and USB cable

    Features:

    1. Projected Capacitive touch screen
    2. Customization
    3. 3.5 inch to 86 inch(More large sizes products are developed now)
    4. Multi touch point
    5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
    6. USB/IIC port

    7. Low MOQ


    application:



    Competitive advantages:

    1. 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
    2. Own 60000sqm factory_good lead time and stable quality
    3. In-housing touch sensor development and optical bonding workshop
    4. Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
    5. Strong reseach team for both software and hardware support
    6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink


    Delivery time:

    Sample: 10-15 working days

    Mass production:

    1. Small sizes(smaller than 12.1 inch): 15-20 working days.

    2. Large sizes(larger than 12.1 inch):20-25 working days.

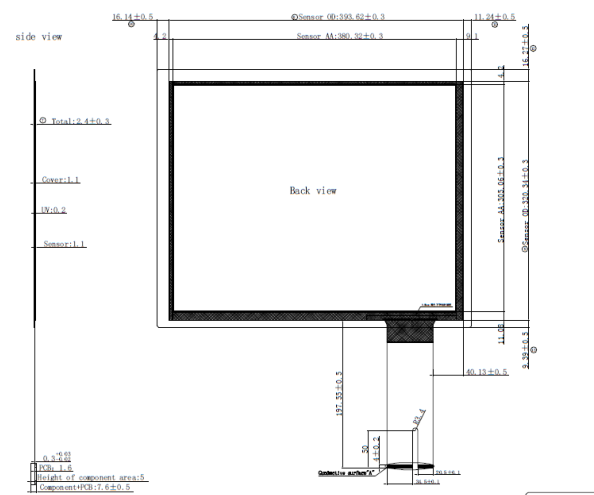

    Product drawing:


    FAQ:


    Q. Are you a manufacturer or a trading company?
    A: We are a manufacturer.


    Q. What's payment terms can you accpet?

    A: T/T in advance, or 30% as deposite,70% as balance before delivery.


    Q. How do you control the quality ?
    A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.


    Q. What's MOQ?
    A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.


    Q. Can you give us a favorable discount ?
    A: Of course, a favorable discount will be offered if the quantity is sizable.


    Q:Does the product support customization?

    A:Of course

    Product production environment map:
