    High Resolution I2C Optical Bonding 10.1 Inch Dust Resistance

    High Resolution I2C Optical Bonding 10.1 Inch Dust Resistance


    Optical bonding technology: Optical bonding technology is using optical glue TP assembly LCD and touch panel together without air. It's different from traditional adhesive bonding products. For traditional adhesive bonding products, double sided adhesive is pasted around four edges, there is still air gap between touch panel and LCD. For optical bonding products, there is glue the whole surface of the LCD. Dust and fog can't go inside. And the display effect will be great.


    Specification:

    1TypeProjected capacitive touch panel
    2VA of cover lens222*124mm
    3OD of cover lens239.4*156.25mm
    4AA of ITO glass225*144.43mm
    5OD of ITO glass237.8*154.25mm
    6Structure0.7mm cover+0.7mm ITO sensor
    7Controller boardGoodix 928, 9271
    8Working environment-20℃-70℃
    9Storage environment-30℃-80℃
    10OS supportedAndroid, Linux, WCE

    Features of optical bonding product:

    1.Since there is no gap between LCD and touch panel after assembly, dust and fog can't go inside the module.

    2.There will be low interference of LCD to touch panel.

    3.Vivid and clear crystal display performance than ordinary bonding method.

    4.Improved hardness, vibration resistance of TFT module


    Features of optical bonding product:

    1.Since there is no gap between LCD and touch panel after assembly, dust and fog can't go inside the module.

    2.There will be low interference of LCD to touch panel.

    3.Vivid and clear crystal display performance than ordinary bonding method.

    4.Improved hardness, vibration resistance of TFT module


    Development process of optical bonding products:

    ·Receive customer's LCD samples.

    ·Evaluate LCD structure and and check the thickness of LCD bezel sheet.

    ·Offer quotation for customer's confirmation.

    ·Samples are made for confirmation

    ·Trial production.

    ·Mass production.


    Lead time

    for samples

    Touch panel: 15 days after PO.

    Optical bonding: 3-5 days after touch panels and LCD get ready.

    for mass production

    Touch panel: 18 days after PO.

    Optical bonding: 5-8 days after touch panels and LCD are made.


    Optical bonding technology: Use optical glue to bond LCD and touch panel without air gap.



    Comparison between ordinary adhesive bonding and optical bonding


    Optical bonding eliminates the air gap between LCD and toch panel, which helps to reduce the light reflection by almost 75%. And it makes the module look more transparent and enhance the dispaly effect of the screen.

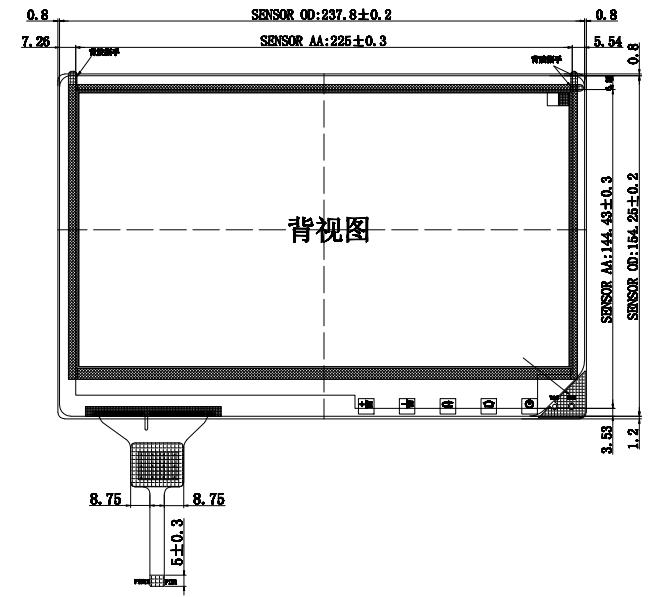

    Engineering drawing


    10.1 Inch USB Optical Bonding LCD Goodix Chipset Vivid Crystal Display Performance
