    21.5inch Customized Capacitive Touch Screen Panel For Vending Machine with Anti Explosive Feature

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-6437
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    21.5inch Customized Capacitive Touch Screen Panel For Vending Machine with Anti Explosive Feature

    21.5inch Customized Capacitive Touch Screen Panel For Vending Machine With Anti Explosive Feature


    Product Specification:

    Size:

    21.5inch

    Total Thickness:

    4.3±0.3mm

    Outline of Cover Lens:

    517.3*308.95±0.3mm

    Outline of ITO Sensor:

    514.29*305.95±0.3mm

    Viewing Area:

    477.3*269±0.3mm

    Active Area:

    479.2*270.6±0.3mm

    TP Structure:

    G+G

    Controller:

    ILITEK, WEIDA, EETI etc.(Customized)

    Cover glass thickness:

    1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)

    Cover glass treatments:

    AG, AR, AF, AE (Customized)

    CTP interface:

    USB

    Operating system:

    Win7, Win8, Win10, WCE, Android, Linux, XP

    Working temperature and humidity

    -20°C~70°C,20~85% RH, non-condensing

    Storage environment and humidity :

    -30°C~80°C, 20~85% RH, non-condensing

    Transparency

    85%

    Response time:

    <10ms

    ESD Air discharge:

    8KV

    ESD Contact discharge:

    4KV

    Pen hitting life:

    ≥10,000,000/point

    Pen sliding Durability:

    ≥500,000 times

    Finger Touch life:

    ≥35,000,000 times

    Certifications:

    CE, FCC, Rohs

    Aspect ratio:

    16:9

    Report rate:

    100HZ

    Input method:

    Finger or capacitive pen

    Warranty:

    1 Year

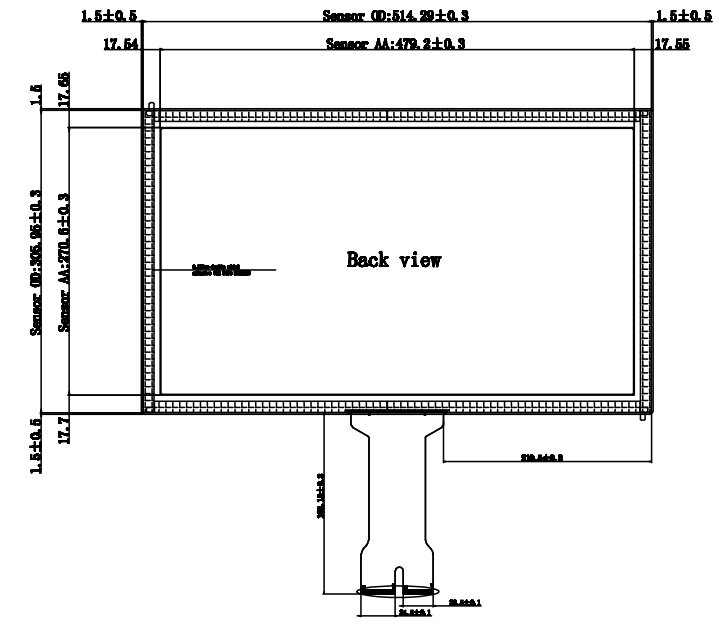

    Product Drawings:


    Delivery Time:


    Samples in stock: 1~3 working days

    Customized project: 10~15days for samples

    Mass production: 10~18days


    FAQ:


    Q. Are you a factory or trading company?

    A: We are a factory.

    Q. Does your products have CE&Rohs certificates?

    A: Yes.

    Q. What’s the shipping method?

    A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

    Q. What’s the payment methods?

    A: T/T, 30% deposit before production, the balance before shipment.

    Q. What size of touch screen can you manufacture?

    A: 3.5” to 65”, the bigger size are researching and developing.
