    Black Multi Touch Points DC5V 75" GFF PCAP Touch Panel

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-7858V2
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 13K per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Black Multi Touch Points DC5V 75" GFF PCAP Touch Panel

    Black Multi Touch Points DC5V 75" GFF PCAP Touch Panel


    75"GFF PCAP Touch Panel with Multi Touch Points with Utra-narrow Bezel


    Basic specification:


    Size75 inch
    Total thickness6.5±0.5mm
    Outline of Cover Lens1760*1038 +0/-1mm
    Outline of ITO film Sensor1760.66*1038.93 ±0.5mm
    Viewing Area1650.66*928.53 ±0.5 mm
    Active Area1650.66*928.53±0.5 mm
    InterfaceUSB
    Input voltageDC5V
    Response time10ms
    Report rate100 HZ
    Input methodHand writing or capacitive pen
    Transmittance≥85%
    Package list75 inch Touch panel,controller board and USB cable
    AG Haze Degree6±2

    SP-ITO introduction


    SP- ITO is a thin film material that can conduct electricity and behave as optically transparent. It is an extremely important optoelectronic material. It is widely used in P- cap Touch Panel,Smart Window,EMI etc.
    SP-ITO flexible nano transparent conductive material uses magnetron sputtering process, which effectively improves the stability and cost advantage of the product. It is completely different from ITO, metal grid, and nano silver wire, and has a greater cost-effective advantage.


    SP-ITO advantages


    Compared with other materials, SP-ITO has good electrical conductivity, good light transmission, excellent flexibility, high cost performance, good stability, and no moiré issue.


    SP-ITO material parameter

    SP-ITO-5

    (In development)

    UnitSpecTest Method
    ResistanceΩ/□5ASTM D 991
    Transmittance%84ASTM D1003
    Haze%0.45ASTM D1003
    b*(T)%1.6ASTM E1164
    Uniformity%3.2%(Max.-min.)/ 2•Ave
    Adhesion-5BASTM D3359
    Warping-bending radius of 20mm125umPET is 100000 times
    Dyne(HC)-40Arco pen 5s

    SP-ITO-10UnitSpecTest Method
    ResistanceΩ/□10ASTM D 991
    Transmittance%86ASTM D1003
    Haze%0.42ASTM D1003
    b*(T)%1.4ASTM E1164
    Uniformity%2.5%(Max.-min.)/ 2•Ave
    Warping-bending radius of 20mm125umPET is 100000 times
    Adhesion-5BASTM D3359
    Dyne(HC)-40Arco pen 5s

    Competitive advantages:


    1.21 years experience in designing and manufacturing touch panel, G+G / G+F+F are
    available.
    2. A strong research team for both software and hardware and provide good pre-sales
    and after-sales service.
    3. Except some standard products, customized touch panel from 3.5” to 86” now, the
    bigger size is been developing and researching.
    4. Touch-China has created a complete ecological chain related to intelligent touch
    display products, from AG glass material - cover glass - capacitive touch panel- optical
    bonding with LCD display.
    5. Own industrial parks, good guarantee for product quality and lead time.
    6. Touch panels for automobile,industry are in a leading position in China.

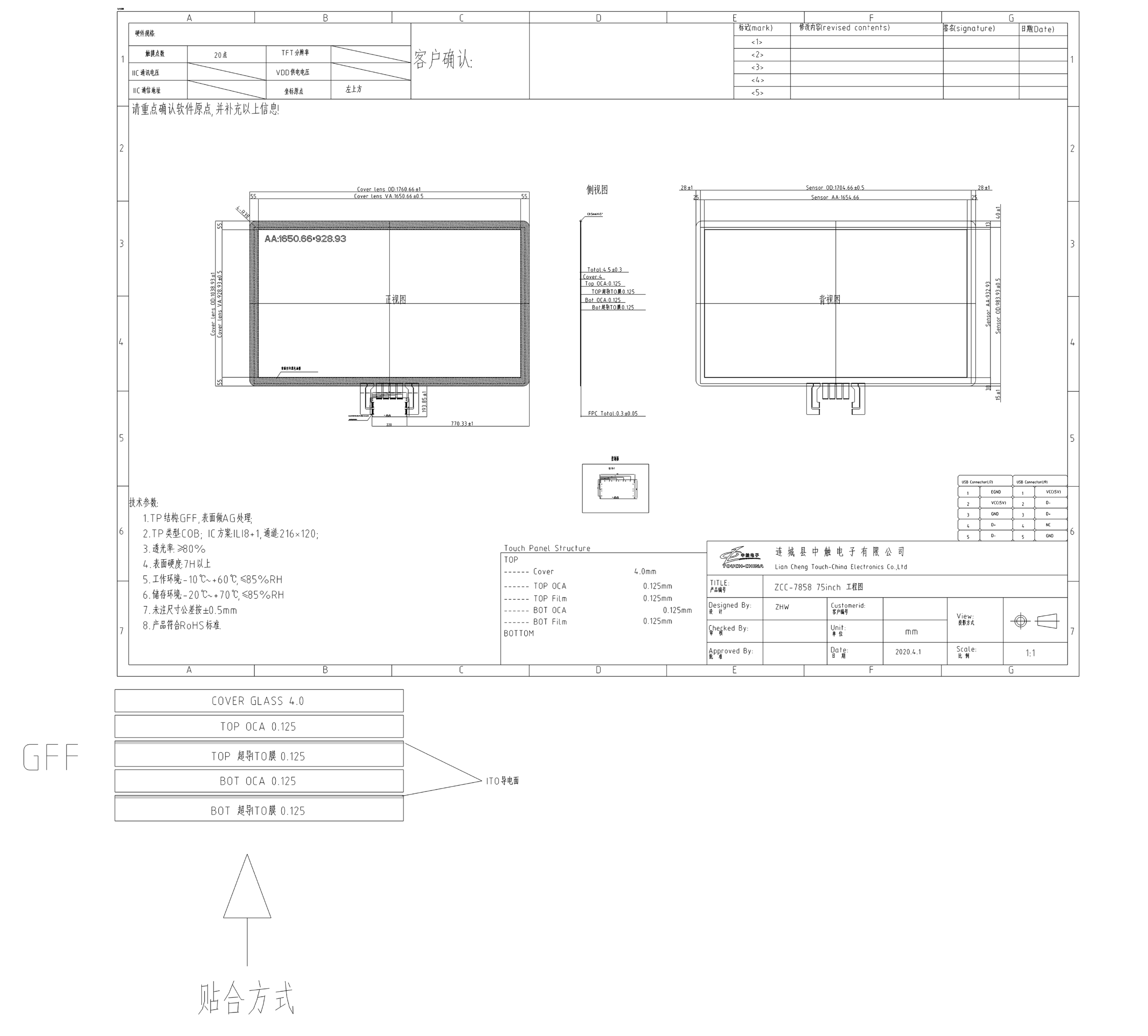

    Product drawing:




    Quality Black Multi Touch Points DC5V 75" GFF PCAP Touch Panel for sale
