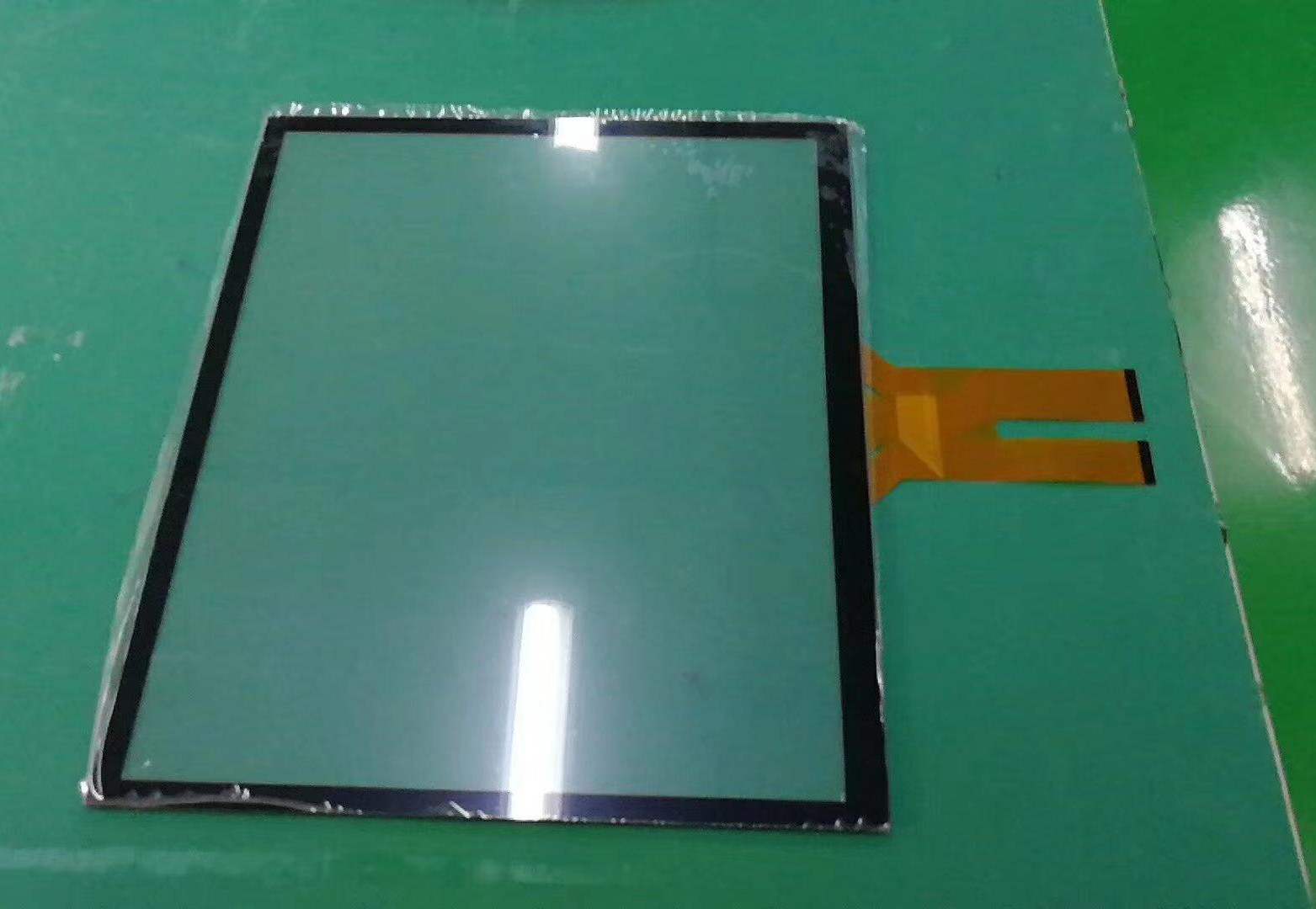

15inch-55inch TEN Points Pct Touch Panel With ILITEK EETI ATMEL IC
Projected Capacitive TouchScreen Technology
Projected Capacitive Technology permits more accurate and flexible
operation by etching the conductive layer on the touch screen.
Projected Capacitive Technology (PCT) is a more robust solution
versus resistive touch technology since PCT's top layer is made of
glass.
Touch-China's Projected Capacitive Touchscreens can support
resolutions up to 1024 x 1024 with a sampling rate of 50 times per
second.
Our Projected Capacitive Touch Screens uses multiple layers of
glass wih optical lamination in assembly process.
This makes the PCT touch screen the same touchness as tempered
glass which could stand against shock and impact.
Projected Capacitive touch panels are embedded with high
performance IC and users can enlarge, shrink, rotate, flip and drag
pages easily
due to the multi-touch gesture support (multi touch touch screen).
1) P+G=PET+GLASS(the cover lens is PET and the touch sensor is
glass)
2) G+G=GLASS+GLASS (the cover lens is glass and the touch sensor is
glass)
3) G+F/F=Glass+FILM+FILM(the cover lens is glass and the touch
sensor is film+film)
Quick Details:
1. Size: 15inch-55inch
2. Resolution: 1024*1024(2048*2048)
3. Input method: Finger or touch pen
4. Material: P+G,G+G,G+F/F
5. Touch action force: 30~60g
6. Operating Voltage: 3.3V
Main Advantage
■ Multi-points touching
■ Superior image clarity with high light transmission
■ Controller IC close to sensor for best performance
■ High Sensitive and fast response
■ Highest resolution
■ More application in electronic fields
Specification
№ | Item | Specification |
1 | Item model | ZCC-XXXX |
2 | Detection method | Projected Capacitive |
3 | Size | 15"-55" |
4 | Aspect ratio | 4:3/16:9 |
5 | Resolution | According to the size |
6 | Input method | Finger or capacitive touch pen |
7 | Touch action force | 30~60g |
8 | Operating Voltage | 3.3V adjustable |
9 | Operating current | 2.5~10mA Depends on IC |
10 | Operating temperature | -10°C~60°C |
11 | Storage temperature | -15°C~40°C ,＜90%RH；40°C~70°C,＜60%RH |
12 | Humidity | 10%~90%RH at 40°C, non-condensing |
13 | Relative humidity | 10%~90%RH at 40°C, non-condensing |
14 | Response time | <10ms |
15 | Transparency | ≥83% depends on the quantity of layers |
16 | Surface hardness | ≥6H |
17 | Material | P+G,G+G,G+F/F |
18 | Thickness | 0.5-6.0mm adjustable |
19 | Light transmission | 90%~100% |
20 | Durability | Scratch-free; More than 50,000,000 touches in one location without
failure |
21 | Drivers available | Windows 2000,Windows XP,Windows NT,Linux,Mac |
22 | Certificates | CE, FCC, RoHS, CCC |
23 | Working environment | Under sunlight,indoor and outdoor |
24 | Finger Touch life | ≥35,000,000 times |
25 | Warranty | 1 year |
Example for some models' dimensions:
0 | Size | Item NO. | CG OD (mm) | CG VA (mm) | Sensor AA mm | Sensor/CG Thick mm | Total thick |
1 | 15” | ZCC-6820 | 339.90*263.90 | 305.00*229.00 | 308.00*232.00 | 1.1/1.1 | 2.45 |
2 | 15.6” | ZCC-6821 | 387.00*237.00 | 345.00*195.00 | 349.00*198.00 | 1.1/1.1 | 2.45 |
3 | 17” | ZCC-6822 | 377.00*309.00 | 339.00*271.30 | 340.90*274.30 | 1.1/1.1 | 2.45 |
4 | 18.5” | ZCC-6824 | 447.00*271.00 | 410.80*231.40 | 413.80*234.40 | 1.1/1.1 | 2.45 |
5 | 19” | ZCC-6825 | 421.00*346.00 | 377.30*302.10 | 380.30*305.10 | 1.1/1.1 | 2.45 |
6 | 21.5” | ZCC-6826 | 525.00*312.80 | 478.00*269.80 | 479.10*270.60 | 1.1/1.1 | 2.45 |
7 | 22” | ZCC-6827 | 550.00*376.00 | 475.70*298.10 | 477.70*300.10 | 1.1/1.1 | 2.45 |
8 | 23.6/24” | ZCC-7384 | 573.00*341.00 | 527.20*296.60 | 528.80*298.20 | 1.1/3 | 4.35 |
9 | 27” | ZCC-7385 | 641.80*382.20 | 599.60*338.15 | 602.40*340.90 | 1.1/2 | 3.35 |
10 | 32” | ZCC-7386 | 757.10*450.60 | 699.40*393.80 | 700.90*395.50 | 1.1/2 | 3.40 |
11 | 42/43” | ZCC-7912 | 994.20*587.30 | 934.20*527.30 | 938.20*531.10 | 1.8/3 | 5.15 |
12 | 55” | ZCC- | 1273.00*744.40 | 1213.60*684.40 | 1205.60*678.40 | 1.8/3 | 5.15 |

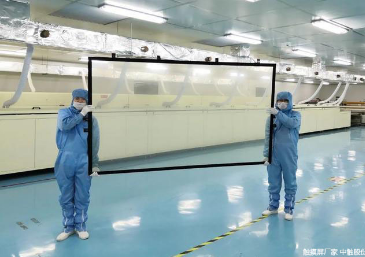

Professional production line:
FAQ
Q: Are you trading company or manufacturer ?
A: We are over 21years factory.
Q: What do I need to offer to get a quote ?
A: Please offer 2D or 3D drawings (material, dimension, tolerance,
surface treatment and other technical requirement etc.) ,quantity,
application or sample.
Then we will quote the best price within 24hours.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample.After price confirmation, you can
require for samples to check our quality.
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the materials are in stock.
or it is 10-15 working days if materials are not in stock, it is
according to quantity.
