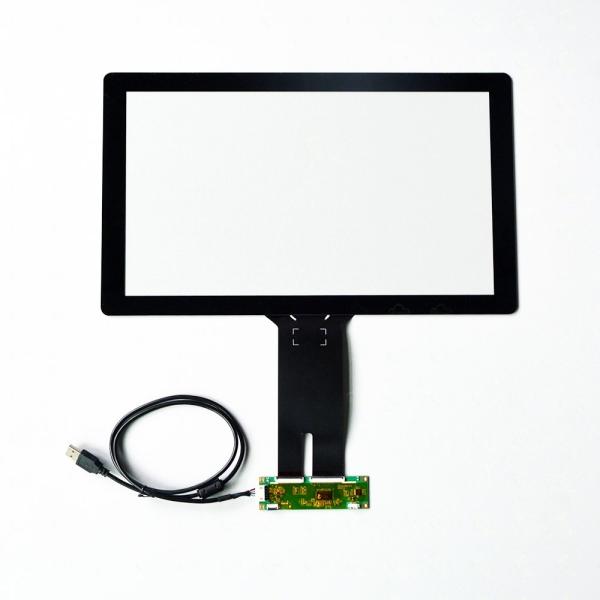

    10ms 32 Inch Touch Screen Panel With 3mm Anti Glared Cover Glass

    10ms 32 Inch PCAP Touch Panel With 3mm Anti Glared Cover Glass


    32 Inch PCAP Touch Screen With Multi Touch With 3mm Anti-Glared Cover Glass


    Touch-China's projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Wintouch's projected capacitive touchscreens are designed for the rigors of commercial applications.


    Basic specification:

    Size32 inch
    Total thickness4.3±0.3mm
    Outline of Cover Lens757.12*450.6±0.5mm
    Outline of ITO Sensor732*427.41±0.5mm
    Viewing Area699.4*393.84±0.3mm
    Active Area700.92*395.58±0.3mm
    InterfaceUSB
    Input voltage5V
    Response time10ms
    Report rate100 HZ
    Input methodHand writing or capacitive pen
    Transmittance﹥85%
    Package list32 inch Touch panel,controller board and USB cable
    AG Haze Degree6±3

    Features:

    1. Projected Capacitive touch screen
    2. Customization
    3. 3.5 inch to 65 inch(More large sizes products are developed now)
    4. Multi touch point
    5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
    6. USB/IIC port

    7. Low MOQ


    Capacitive Touch Screen Features:


    • Response speed fast, smooth touch
    • Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms
    • Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
    • Precision-touch capacitive screen is using the body's current-sensing
    • Accuracy up to 99% proficient in writing, no break no drift
    • Completely dead 10-point touch really, any point can withstand more than 50 million times touch
    • No ghost after the first calibration, drift-free
    • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable
    • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems

    Advantages of Touch-China:


    • 21 years experience in designing and manufacturing touch panel, G+G / G+F+F are available.
    • A strong research team for both software and hardware and provide good pre-sales and after-sales service.
    • Except some standard products, customized touch panel from 3.5” to 86” now, the bigger size is been developing and researching.
    • Touch-China has created a complete ecological chain related to intelligent touch display products, from AG glass material - cover glass - capacitive touch panel- optical bonding with LCD display.
    • Own industrial parks, good guarantee for product quality and lead time.
    • Touch panels for automobile,industry are in a leading position in China.

    Delivery time of PCAP:

    Sample: 10-15 working days

    Mass production:

    1.Small sizes(smaller than 12.1 inch): 18 working days.

    2.Large sizes(larger than 12.1 inch):20-25 working days.


    Pcap drawing:
