5 Point Touch 7 Inch I2C PCAP Touch Screen COF TP Type RoHS
Approved
Description
The capacitive touch panel is usually made of two layers or more.
The basic layer is the sensor, the other layer is the cover glass
on the top. Both the sensor and cover glass can be customized based
on customers’ detailed requirements. The normal structures can be
G+G, G+F, G+F+F, P+G+G etc. Capacitive touch panel is different
from resistive touch panel, when the touch panel is touched,
people’s capacitance can be sensed by the touch panel. Then the
chip can distinguish where the touch is.
Parameters of the touch panel
| Size: | 7inch |
| Total Thickness: | 1.95±0.2mm |
| Outline of Cover Lens: | 203*149±0.1mm |
| Outline of ITO Sensor: | 175.1*108±0.2mm |
| Viewing Area: | 154.1*86±0.2mm |
| Active Area: | 155.1*87±0.3mm |
TP Structure: | G+G |
| Controller: | Goodix 911 |
| Cover glass thickness: | 0.7mm,1.1mm, 2mm,3mm(optional) |
| Cover glass treatments: | AG, AR, AF (Optional) |
| CTP interface: | I2C |
| Operating system: | Android, Linux |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, RoHS, REACH |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Ball drop test standard | 227g, 100cm for 3 times |
| Warranty: | 1 Year |
Advantages of Touch-China
1. We have a strong RD and manufacturing team.
2. We have 20 year experience in touch panel field. We are
experienced to provide solutions to various touch panels.
3. We have good resources of the raw materials, which make us
capable of delivering the goods at stable cost and on time.
4. We can provide adhesive and optical bonding solution. Customer
can provide the LCD or we can buy the LCD directly.
Reliability tests

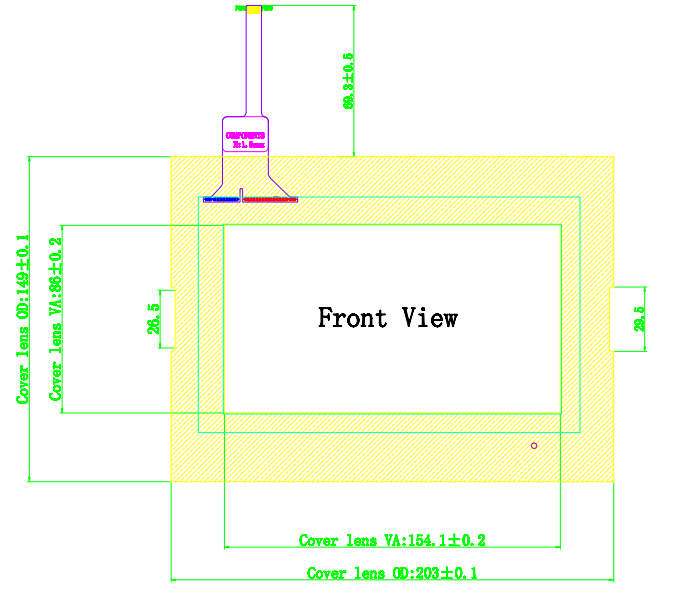

Engineering drawing
