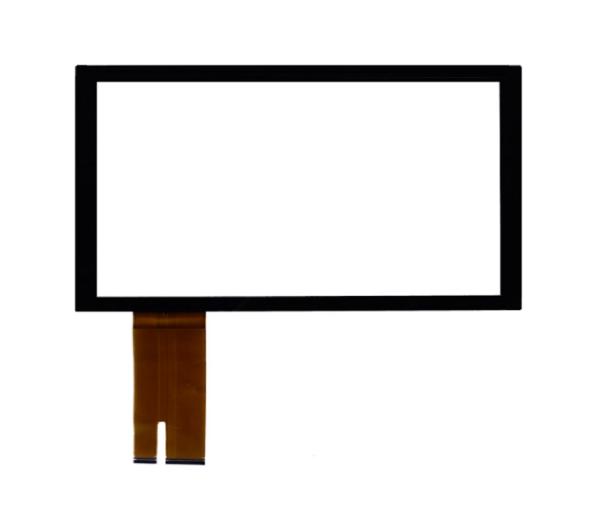

    Narrow Bezel Kiosk Touch Panel Anti Glare 7H Hardness 16:9 Aspect Ratio

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-5286
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs per month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Narrow Bezel Kiosk Touch Panel Anti Glare 7H Hardness 16:9 Aspect Ratio

    Narrow bezel Kiosk Touch Panel 12.1 inch Self-Service ATM With Anti-glare


    Product Specification:

    Size:12.1 inch
    Total Thickness:3.03±0.3mm
    Outline of Cover Lens:260.5*204±0.3mm
    Outline of ITO Sensor:258.9*201.2±0.3mm
    Viewing Area:244.76*183.32±0.3mm
    Active Area:247*185.5±0.3mm
    TP Structure:G+G
    Controller:ILITEK, WEIDA, EETI, Silicon Works etc.(Customized)
    Cover glass thickness:1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)
    Cover glass treatments:AG, AR, AF, AE (Customized)
    CTP interface:USB
    Operating system:Win7, Win8, Win10, WCE, Android, Linux, XP
    Working temperature and humidity-20°C~70°C,20~85% RH, non-condensing
    Storage environment and humidity :-30°C~80°C, 20~85% RH, non-condensing
    Transparency≥85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, FCC, Rohs
    Aspect ratio:16:9
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Warranty:1 Year

    Company advantages

    • 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
    • Own 60000sqm factory_good lead time and stable quality
    • In-housing touch sensor development and optical bonding workshop
    • Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
    • Strong reseach team for both software and hardware support
    • Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink

    Projected Capacitive Touch panel:


    • Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
    • There is no air gap between layers like in a resistive touch panel.
    • The patterns on the two parallel ITO layers form a grid of capacitors.
    • The electric fields of these capacitors are projected through the top layer of glass.
    • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
    • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
    • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

    Delivery Time:(In the case of global epidemics, we will try our best to ensure delivery speed.)

    • Samples in stock: 3-8 working days
    • Customized project: 10~15days for samples
    • Mass production: 10~18days

    FAQ:


    Q. Are you a manufacturer or a trading company?
    A: We are a manufacturer.


    Q. What's payment terms can you accpet?

    A: T/T in advance, or 30% as deposite,70% as balance before delivery.


    Q. How do you control the quality ?
    A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.


    Q. What's MOQ?
    A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.


    Q. Can you give us a favorable discount ?
    A: Of course, a favorable discount will be offered if the quantity is sizable.


    Q:Does the product support customization?

    A:Of course

    Drawings:



    Application:


    -- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc

    -- Advertising player -- Education Whiteboard -- Medical device

    -- Industrial PC panel -- Multi-touch table -- POS

    -- Restaurant menu -- ATM


    Product production environment:
