10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

    Buy cheap 10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage from wholesalers

    Buy cheap 10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage from wholesalers
    • Buy cheap 10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage from wholesalers
    • Buy cheap 10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage from wholesalers

    10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-4606
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K per month
    Delivery Time : 18-22 working days
    • Product Details
    • Company Profile

    10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

    10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage


    Basic specification:

    Size10.4 inch
    Total thickness1.8±0.2mm
    Outline of Cover Lens226*179±0.1mm
    Outline of ITO Sensor225*177.15±0.2mm
    Viewing Area213.6*161±0.2mm
    Active Area214.63*162.02±0.3mm
    InterfaceUSB
    Input voltage5V
    Response time10ms
    Report rate100 HZ
    Input methodHand writing or capacitive pen
    Transmittance﹥85%
    Package list10.4 inch Touch panel,controller board and USB cable

    Features:

    1. Projected Capacitive touch screen
    2. Customization
    3. 3.5 inch to 65 inch(More large sizes products are developed now)
    4. Multi touch point
    5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
    6. USB/IIC port

    7. Low MOQ


    Applications:

    Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
    Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,

    POS,Restaurant menu,ATM etc.


    Competitive advantages:

    1. 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
    2. Own 60000sqm factory_good lead time and stable quality
    3. In-housing touch sensor development and optical bonding workshop
    4. Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
    5. Strong reseach team for both software and hardware support
    6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink


    Delivery time:

    Sample: 12-18working days

    Mass production:

    1.Small sizes(smaller than 12.1 inch): 18-25 working days.

    2.Large sizes(larger than 12.1 inch):20-28 working days.

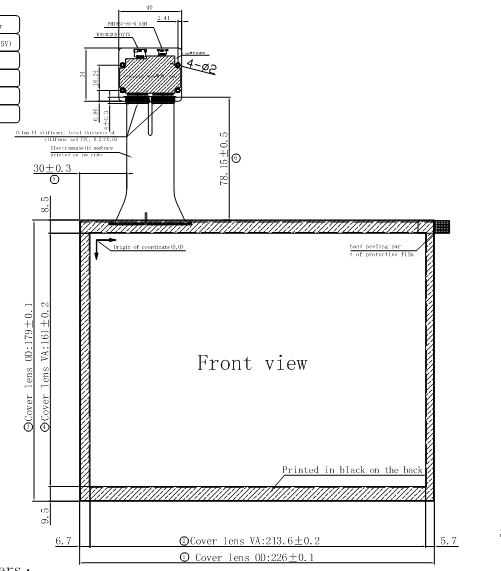

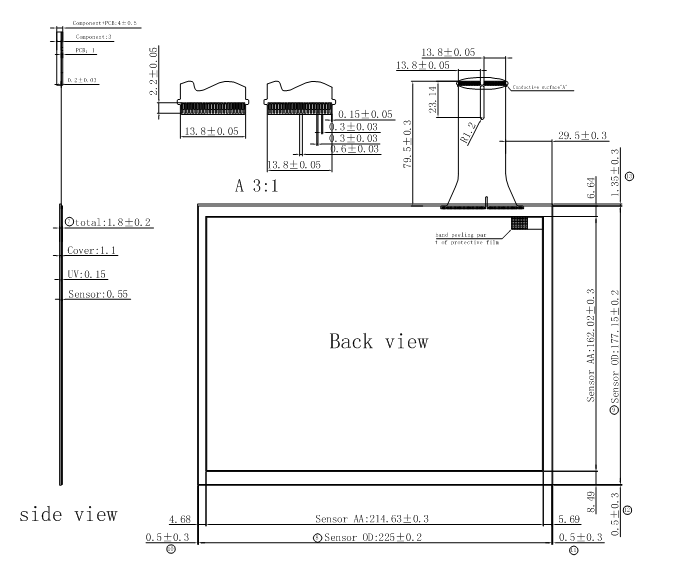

    Technical Drawings:

    Pictures of factory products:
