5 Point 7 Inch I2C PCAP Lcd Touch Screen Panel COF Type RoHS
Approved
Description
The capacitive touch panel is usually made of two layers or more.
The basic layer is the sensor, the other layer is the cover glass
on the top. Both the sensor and cover glass can be customized based
on customers’ detailed requirements. The normal structures can be
G+G, G+F, G+F+F, P+G+G etc. Capacitive touch panel is different
from resistive touch panel, when the touch panel is touched,
people’s capacitance can be sensed by the touch panel. Then the
chip can distinguish where the touch is.
Parameters of the touch panel
Size: | 7inch |
Total Thickness: | 1.95±0.2mm |
Outline of Cover Lens: | 203*149±0.1mm |
Outline of ITO Sensor: | 175.1*108±0.2mm |
Viewing Area: | 154.1*86±0.2mm |
Active Area: | 155.1*87±0.3mm |
TP Structure: | G+G |
Controller: | Goodix 911 |
Cover glass thickness: | 0.7mm,1.1mm, 2mm,3mm(optional) |
Cover glass treatments: | AG, AR, AF (Optional) |
CTP interface: | I2C |
Operating system: | Android, Linux |
Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
Transparency | ≥85% |
Response time: | <10ms |
ESD Air discharge: | 8KV |
ESD Contact discharge: | 4KV |
Pen hitting life: | ≥10,000,000/point |
Pen sliding Durability: | ≥500,000 times |
Finger Touch life: | ≥35,000,000 times |
Certifications: | CE, RoHS, REACH |
Aspect ratio: | 16:9 |
Report rate: | 100HZ |
Input method: | Finger or capacitive pen |
Ball drop test standard | 227g, 100cm for 3 times |
Warranty: | 1 Year |
Advantages of Touch-China
1. 22 years' experience in designing and manufacturing touch
solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to
customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV
ceramic ink
Reliability tests
Engineering drawing
Production processes
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before
delivery.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production
lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for
certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity
is sizable.
Q:Does the product support customization?
A:Of course
Shipments:
DHL, UPS, FedEx, TNT

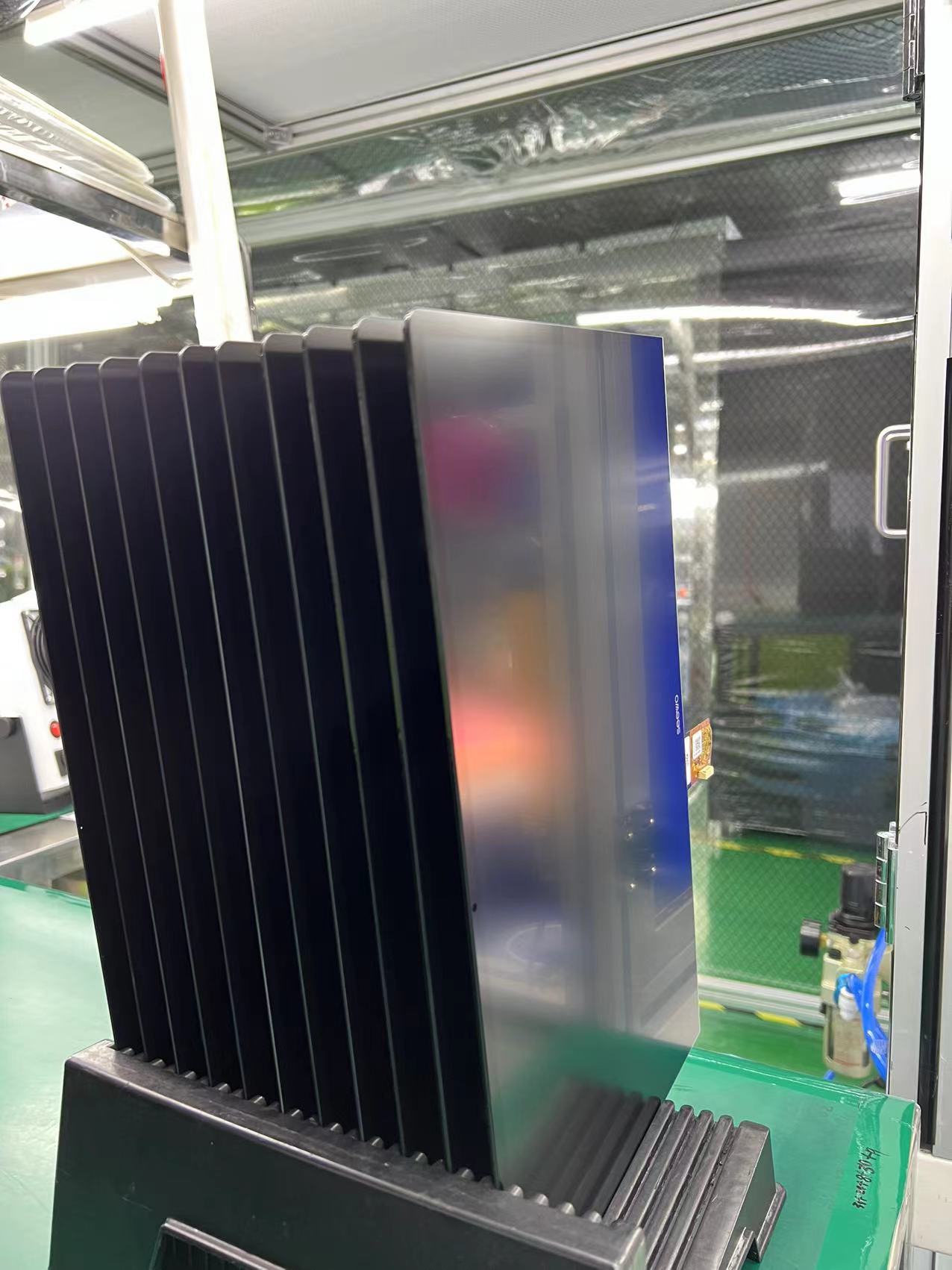

Product production environment map:
