7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness

Ask Lasest Price
Brand Name :	Touch-China
Model Number :	ZCC-6504
Certification :	CE, Rohs, FCC
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	20K pcs / month
Delivery Time :	10-15days

Add to Cart

Product Details
Company Profile

7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness

7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 point touch

Product Specification:

Size:	7 inch
Total Thickness:	1.45±0.2mm
Outline of Cover Lens:	192.34*128±0.1mm
Outline of ITO Sensor:	164.5*99.1±0.2mm
Viewing Area:	154.81*86.52±0.2mm
Active Area:	158*90.3±0.2mm
TP Structure:	G+G
Controller:	ILITEK, WEIDA, Silion works, EETI (Optional)
Cover glass thickness:	1.1mm,1.8mm,2mm,3mm (Optional)
Cover glass treatments:	AG, AR, AF, AE (Optional)
CTP interface:	IIC
Operating system:	Android, Linux
Working temperature and humidity	-20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity :	-30°C~80°C, 20~85% RH, non-condensing
Transparency	≥85%
Response time:	<10ms
ESD Air discharge:	8KV
ESD Contact discharge:	4KV
Pen hitting life:	≥10,000,000/point
Pen sliding Durability:	≥500,000 times
Finger Touch life:	≥35,000,000 times
Certifications:	CE, FCC, RoHS
Aspect ratio:	16:9
Report rate:	100HZ
Input method:	Finger or capacitive pen
Warranty:	1 Year

FAQ:

Q. Are you a factory or trading company?

A: We are a factory.

Q. Does your products have CE&Rohs certificates?

A: Yes.

Q. What’s the shipping method?

A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

Q. What’s the payment methods?

A: T/T, 30% deposit before production, the balance before shipment.

Q. What size of touch screen can you manufacture?

A: 3.5” to 65”, the bigger size are researching and developing.

Q: Can I order a sample before quantity order? And what’s the deliver Time of sample order?

A: Yes, sure.Our company accept sample order before large order. As normal. We have some samples in stock of each model .so we will send the sample order within 1 working days.

Q: Can you accept paypal or escrow for sample order?if not, which payment do you accept?

A: Sorry, Our company is not retailer,we are wholesaler.paypal or escrow is not accept. As the payment terms, we prefer Bank transfer.

Q: How many days will arrive to our country?

A: Based on our experience, as normal it takes about 3-5days will arrive to your country.

Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.

Delivery Time:

Samples in stock: 1~3 working days
Customized project: 10~15 days for samples
Mass production: 15~20 days

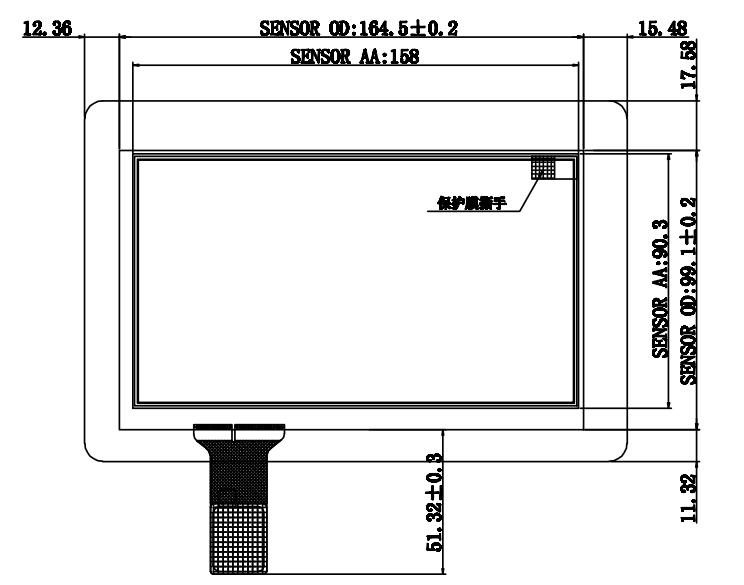

Technical Drawings:
