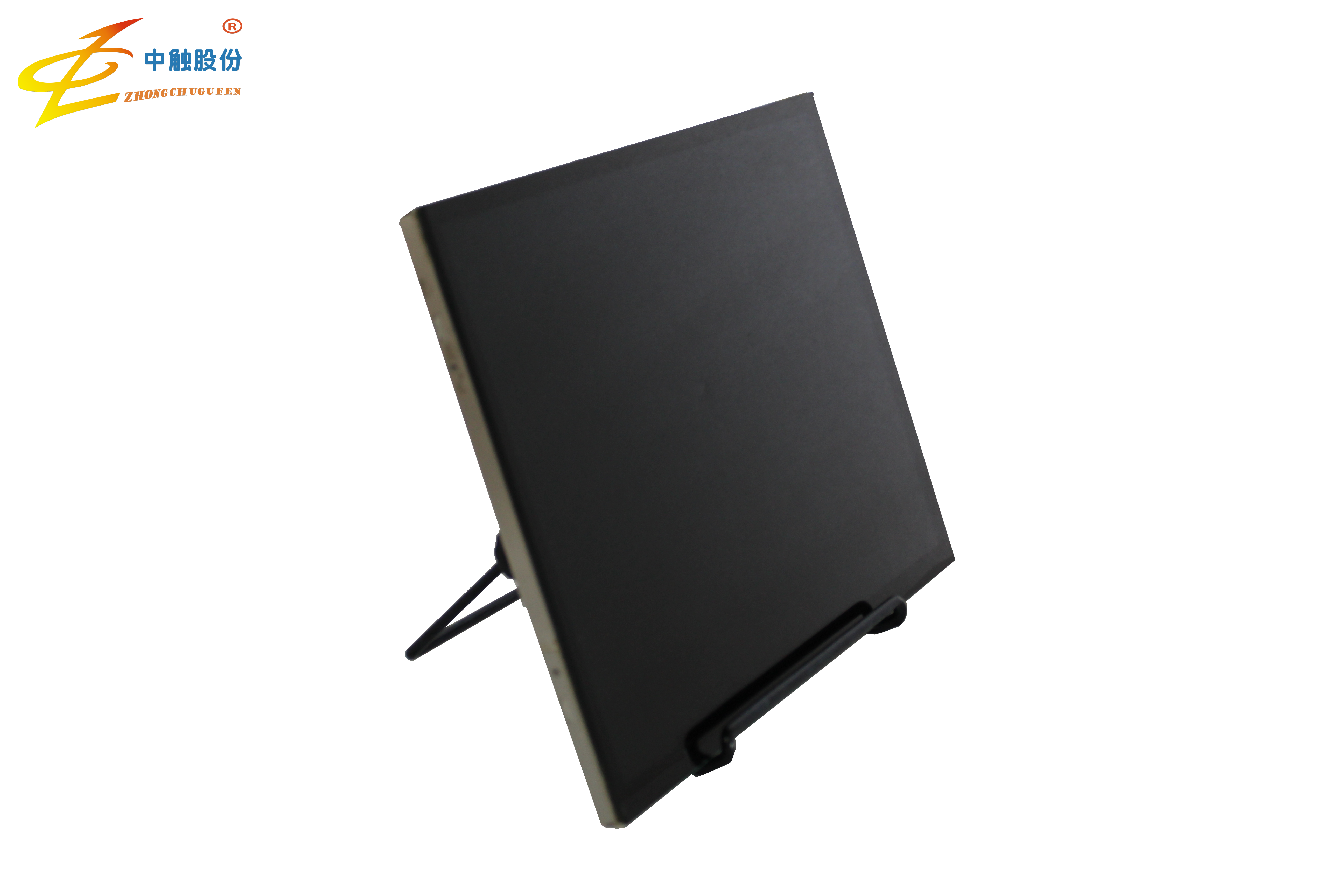

10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet

    Buy cheap 10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet from wholesalers

    Buy cheap 10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet from wholesalers
    • Buy cheap 10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet from wholesalers

    10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-4839
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    10.4inch Waterproof Touch Screen USB Controller For Multi Touch Tablet

    10.4inch Waterproof Touch Screen with USB controllr for multi touch tablet

    Product Specification:

    Size:10.4inch
    Total Thickness:1.85±0.2mm
    Outline of Cover Lens:276.7*206.6±0.1mm
    Outline of ITO Sensor:227.2*178.6±0.2mm
    Viewing Area:212-21*159.41±0.2mm
    Active Area:215.23*162.62±0.2mm

    TP Structure:

    G+G
    Controller:ILITEK, WEIDA, Silion works, EETI (Optional)
    Cover glass thickness:1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)
    Cover glass treatments:AG, AR, AF, AE (Optional)
    CTP interface:IIC
    Operating system:Win7, Win8, Win10, WCE, Android, Linux, XP
    Working temperature and humidity-20°C~70°C,20~85% RH, non-condensing
    Storage environment and humidity :-30°C~80°C, 20~85% RH, non-condensing
    Transparency85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, FCC, Rohs
    Aspect ratio:4:3
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Warranty:1 Year

    Capacitive touch screen Features:

    • Response speed fast, smooth touch.
    • Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
    • Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
    • Precision-touch capacitive screen is using the body's current-sensing.
    • Accuracy up to 99% proficient in writing, no break no drift.
    • Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
    • No ghost after the first calibration, drift-free.
    • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
    • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.

    Application Of Touch Panel

    1. Office Electronic Equipment: money counting machine, office phone set, copying mechine...
    2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
    3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
    4. Medical Devices: sphygmomanometer...
    5. Sports Equipment: running machine...
    6. Industrial Control Equipment: remote control, punched-card machine...
    7. Information Terminal Display: POS...
    8. Security Products: elevator controller, electronic indicator...

    FAQ:


    Q. Are you a factory or trading company?

    A: We are a factory.


    Q. Does your products have CE&Rohs certificates?

    A: Yes.


    Q. What’s the shipping method?

    A: By sea / air / express, which methods to be used on the basis of customer’s requirements.


    Q. What’s the payment methods?

    A: T/T, 30% deposit before production, the balance before shipment.


    Q. What size of touch screen can you manufacture?

    A: 3.5” to 65”, the bigger size are researching and developing.


    Q: Can I order a sample before quantity order? And what’s the deliver Time of sample order?

    A: Yes, sure.Our company accept sample order before large order. As normal. We have some samples in stock of each model .so we will send the sample order within 1 working days.


    Q: Can you accept paypal or escrow for sample order?if not, which payment do you accept?

    A: Sorry, Our company is not retailer,we are wholesaler.paypal or escrow is not accept. As the payment terms, we prefer Bank transfer.


    Q: How many days will arrive to our country?

    A: Based on our experience, as normal it takes about 3-5days will arrive to your country.


    Q: When can I get the price?

    A: We usually quote within 24 hours after we get your inquiry.


    Technical Drawings:

    Competitive advantages:

    1. We have 23-year experience in designing and manufacturing touch panels.

    2. We have strong research team for both software and hardware and provide before and after-sale service.

    3. We cooperate with excellent customers and suppliers.

    4. We have long-term cooperation with excellent IC suppliers all over the world.

    5. We have good guarantee for product quality and lead time.

    6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
