Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP

Shenzhen Touch-China Electronics Co.,Ltd.
Contact Now
    Buy cheap Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP from wholesalers

    Buy cheap Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP from wholesalers
    • Buy cheap Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP from wholesalers
    • Buy cheap Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP from wholesalers

    Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-4612
    Certification : TS16949 CE,ROHS,FCC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K per month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Sensitive Projected Industrial Touch Panel with Medical rubber gloves industrial control 15.6 inch PCAP

    Industrial Touch Panel with Medical rubber gloves, industrial control 15.6 inch PCAP


    Introduction of the Capacitive touch panel principle


    Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

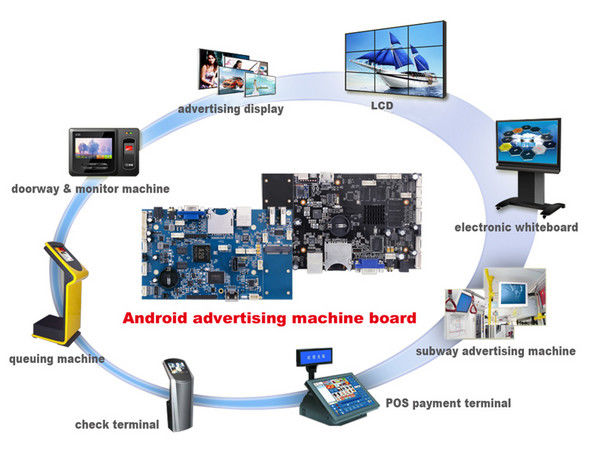

    Applications

    Kiosk / All in one / Digital Signage / Tablet pc / Advertising player / Education Whiteboard / Medical device /

    Industrial pc panel / Multi-touch table / POS / Restaurant menu / ATM etc

    21.5 Inch Projected Capacitive Touch Panel 16/9 Aspect Ratio Solution USB IC controller ILITEK / EETI

    Basic specification:

    Size

    15.6 inch

    Total thickness

    2.4±0.3mm

    Outline of Cover Lens

    386.81*237.12±0.3mm

    Outline of ITO Sensor

    360.72*212.82±0.3mm

    Viewing Area

    345.23*194.54±0.3mm

    Active Area

    348.23*197.54±0.3mm

    Interface

    USB

    Input voltage

    DC5V

    Response time

    10ms

    Panel color

    Black

    Transmittance

    ≧85%

    Input method

    Hand writing or capacitive pen

    Package list

    15.6 inch touch panel,controller board and USB cable


    Engineering drawing:


    Delivery Time:

    Sample in stock: 1-3 working days
    Customized project: 18days for samples
    Mass producyion: 15-20days

    Description:

    1. Projected Capacitive touch screen
    2. Customization
    3. 3.5 inch to 65 inch(More large sizes products are developed now)
    4. Multi touch point
    5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
    6. USB/IIC port
    7. Low MOQ


    Competitive advantages:

    1. We have 23-year experience in designing and manufacturing touch panels.
    2. We have strong research team for both software and hardware and provide before and after-sale service.
    3. We cooperate with excellent customers and suppliers.
    4. We have long-term cooperation with excellent IC suppliers all over the world.
    5. We have good guarantee for product quality and lead time.
    6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.

    FAQ:

    Q. Are you a factory or trading company?
    A: We are a factory.

    Q: What kind of bonding technology can you provide?
    A: We can provide air bonding and optical bonding technology, because we have professional factory and technical personnel.

    Q: Can I order a sample before quantity order? And what’s the deliver Time of sample order?
    A: Yes, sure.Our company accept sample order before large order. As normal. We will send out the sample order within 3 working days if we have stock.

    Q: Can you accept paypal or escrow for sample order?if not, which payment do you accept?
    A: Sorry, Our company is not retailer,we are manufacturer, paypal or escrow is not accept. As the payment terms, we prefer Bank transfer.

    Q. What’s the shipping method?
    A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

    Q: How many days will arrive to our country?
    A: Based on our experience, as normal it takes about 3-5 days will arrive to your country.

    Q. What size of touch screen can you manufacture?
    A: 3.5” to 85”, the bigger size are researching and developing.
