System Optional, 18.5'' All In One PCT Touch Screen with VESA &
Audio In
ZCK185TM is a multi-touch touch monitor based viewing angles and
clear, crisp images. Its slim design makes more aesthetic ,and high
integration . Typical Applications :
Amusement and Entertainment Device,,KIOSK,Self-service
Teminal,Interactive
Digital Signage ,Gambing Machine, E-desk,etc.
Basic specification:
1. Technical index of Display
| Index | Parameter |
| Panel | Screen Size | 18.5 inch |
| Panel type | LCD |
| Interface | Dual LVDS 8bit |
| Backlight type | WLED |
| Display area size | 409.8 * 230.4mm |

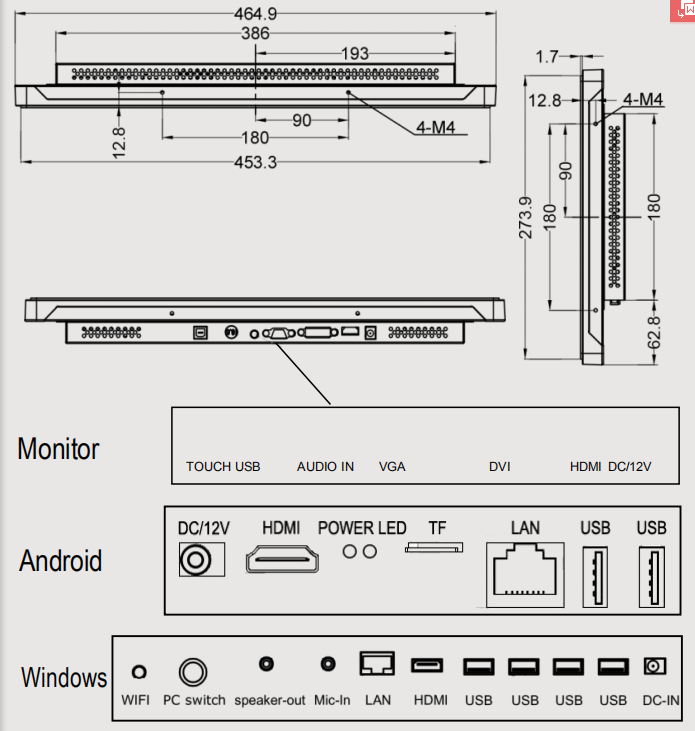

| Appearance size | 464.9*285.5*42.5mm |
| Resolution | 1366×768★ |
| Pixel spacing | 0.245mm×0.245 ★ |
| Dynamic contrast | 1000:1 ★ |
| Brightness | 250cd/m2 ★ |
| Display scale | 16:9 |
| Visual angle | View Angle Free(R/L 178(Typ.),U/D 178(Typ.)) |
| Response time | 5ms(Try,on/off) |
- Technology index of touch control device
| Index | | Parameter |
| Function index | Touch panel size | 18.5inch matches with display device ★16:9 |
| Touch method | 10 points capacitive touch |
| Thickness of cover glass | 3mm |
| Total thickness | 4.75±0.3 |
| Resolution | ≥4096×4096 ★ |
| Response speed | 10ms |
| Reported rate | 100HZ |
| Mechanical function | Input method | Hand writing or pen |
| Touch times | Durable single-point≥30 million times |
| The smallest diameter of touch object | 8mm |
| Explosion-proof | 227g±2g, 100cm, No damage after the
impact at the central area for once. ★ |
| Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
| Optical index | Transmittance | ≥85% |
| working environment | -10-60℃,20-85RH |
| Electrical characteristics | Working voltage | Typical value+5VDC,Allowance range+4.75v~+5.25v |
| Power supply | USB bus |
| Interface | USB |
| Control driver | IC solution | ILI2511 |
Features:
ZCK-133TM are industrial-grade 13.3'' TFT LCD with LED
backlightflat panel monitor with an Al-Mg front panel, a modern
appearance, and one of the most competitive prices for 13.3'' LCD
with LED backlight monitor on the market. The ZCK-133TM are also
extremely light and thin, and provides many industrial-grade
features such as a stainless steel chassis, VESA mounting
flexibility, and more. The ZCK-133TM are especially suitable for
industrial PCs such as IP65. This combination leads to an extremely
reliable and tough system, ready to operate in a wide variety of
industrial applications.
Applications:
Competitive advantages:
1. 22 years' experience in designing and manufacturing touch
solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to
customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV
ceramic ink
Delivery time:(In the case of global epidemics, we will try our best to ensure
delivery speed)
Sample: 15-20 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18 working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before
delivery.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production
lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for
certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity
is sizable.
Q:Does the product support customization?
A:Of course
Some of our great partners:
Cooperation with many large and internationally well-known
enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech,
KF, SMTC etc.

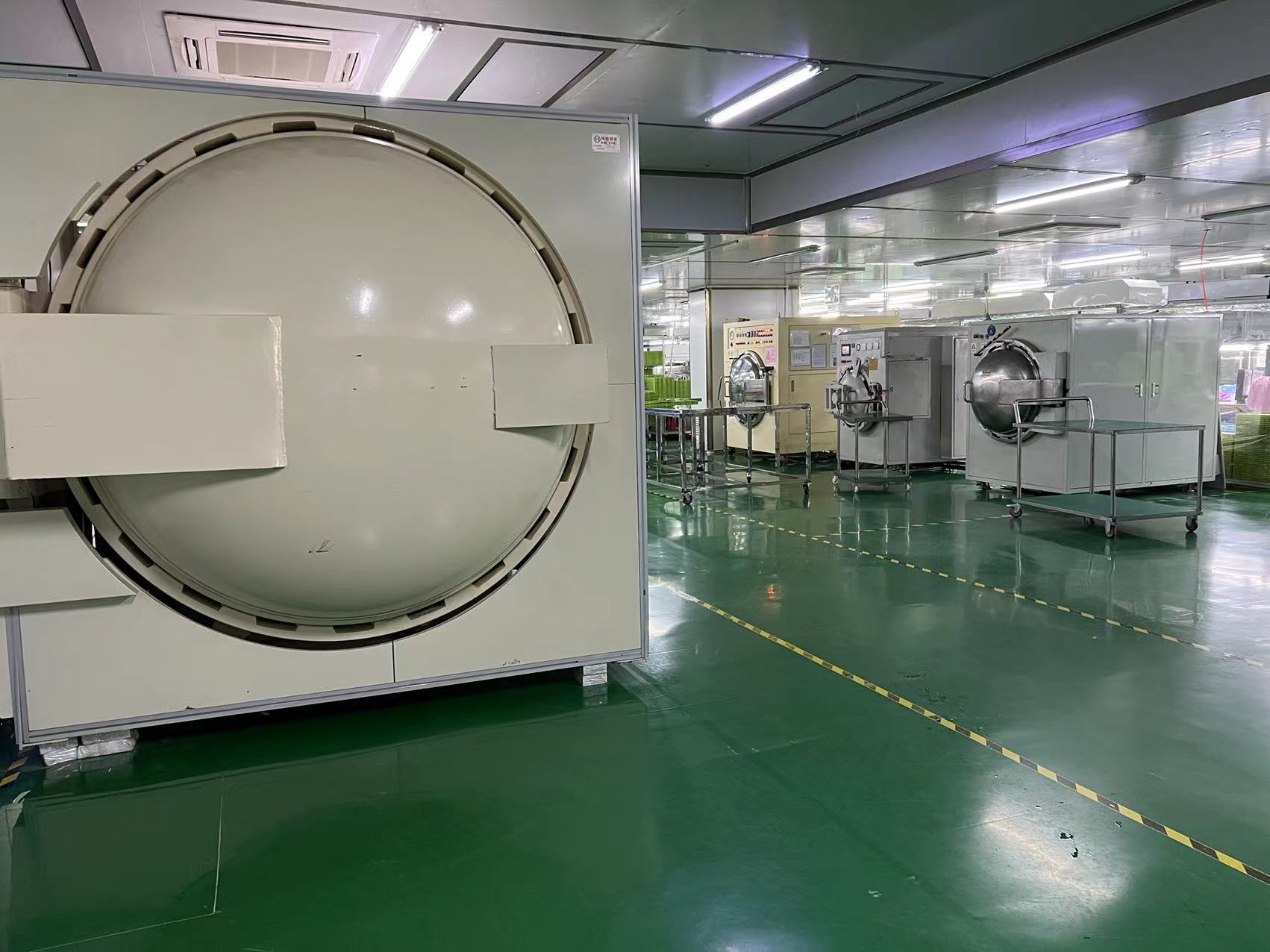

Product production environment map:
