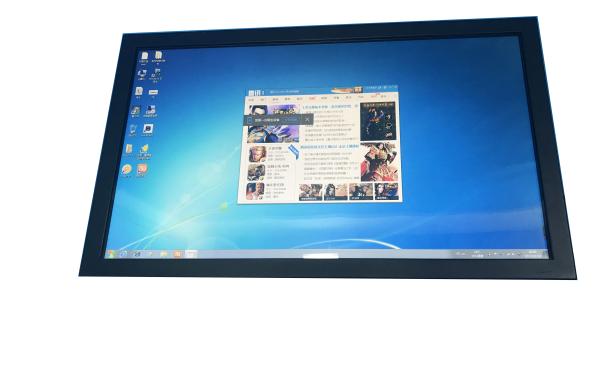

15 inch LED open frame touch screen display industrial grade
Product Specification:
1. specifications for Display equipment
| Item | Parameters |
| Screen | size | 15’’LED |
| Resolution | ≥1280×1024★ |
| Pixel size | 0.294mm×0.294 ★ |
| Dynamic contrast | ≥1000:1 ★ |
| brightness | ≥350cd/m2 ★ |
| Display proportion | 4:3 |
| Viewing angel | Wide angel |
| Digital dynamic oblique direction correction | ●(support) |
| Full digital image processing | ●(support) |
| PC mode | ●(support) |
| Brightness / contrast dynamic optimization | ●(support) |
| Natural edge optimization | ●(support) |
| The whole digital tracking noise reduction | ●(support) |
| Digital cross color suppression | ●(support) |
| MPEG Noise reduction | ●(support) |
| Color information correction | ●(support) |
HDMI input
| ●(support) ★ |
| Display output | ●(support) ★ |
| Audio output | ●(support) ★ |
| Signal compatible*2 | 480i/480p/576i/576p/720p/1080i/1080p ★ |
| Computer input*3 | VGA/HDMI/DVI ★ |
2. Technical Parameters of Display
| Item | | Parameters |
| Mechanical behavior | Antiknock performance | Tempered glass, with a diameter of 63.5mm (quality 1.04Kg) smooth
surface of the steel ball from the height of 1 meter free fall, the
screen is not broken ★ |
| Surface durability | Surface hardness equivalent to glass, Mo hardness level ≥ 7 level |
| Optical index | Transmittance | ≥92%,Up to 100% (no glass) |
| Light resistance | Anti-glare full angle radiation |
| Environmental indicators | temperature range | -20℃ ～ 70℃ |
| Relative humidity | 90% RH at 40 ℃ without condensation |
| Service life | More than 7 years, adaptable, anti-light interference, stable
drift-free, oil-proof, scratch-proof, waterproof,
anti-interference,★ |
| Electrical characteristics | Operating Voltage | + 5VDC typical, allowable range + 4.75V ~ + 5.25V |
| Power supply | USB bus or PS / 2 interface, power supply ripple up to 200mVrms |
| Safety certification | CE,FCC |
| Interface method | USB/EIA 232E |
| Sealing level | ≥IP65 |
3. Electronic technical indicators
| Item | Parameters |
| DC input parameters | 12V/ 5A |
| AC input parameters | 110V-230V;47-63HZ |
| effectiveness | DC full load output ≥ 87% |
| Power consumption | ≤23W |
| Ripple | +12V ＜400MV |
4. Shell technical indicators
| Item | Parameters |
| Material | Superior cold-rolled plate + high-quality tempered glass★ |
| surface | Indoor shell for the cold-rolled plate or aluminum, metal paint |
| crafts | Anti-corrosion, shockproof, anti-magnetic, anti-interference and
anti-static are all available on the surface of the cabinet and the
fine workpieces inside the machine. Complete insulation protection
is available. There are back doors and left and right side doors
for convenient maintenance.★ |
| power supply | Independent power, a key switch machine, voltage: AC 110V-230V
47-63HZ Power consumption: <25W |
| interface | composite,S-video & VGA |
| fan | No noise, circulation cooling★ |
| Exterior | Integrated industrial design, in line with ergonomic and aesthetic
principles, slim cabinet, full of flavor of the times |
Projected Capacitive Touch panel:
- Projected capacitive touch panels are built with two parallel
layers of ITO but, but unlike the old and cheap resistive touch
panels, the ITO layers in a projected capacitive touch panel are
sealed between two sheets of glass by an optically clear adhesive.
- There is no air gap between layers like in a resistive touch panel.
- The patterns on the two parallel ITO layers form a grid of
capacitors.
- The electric fields of these capacitors are projected through the
top layer of glass.
- When the user places a finger near the top surface of the touch
panel, it couples with the electric fields.
- This coupling changes the capacitance of several of the capacitors
in the vicinity of the finger.
- An algorithm converts these changes in capacitance into a location
along the X and Y axes of the panel.
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of
customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
Application:
-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc
-- Advertising player -- Education Whiteboard -- Medical device
-- Industrial PC panel -- Multi-touch table -- POS
-- Restaurant menu -- ATM
