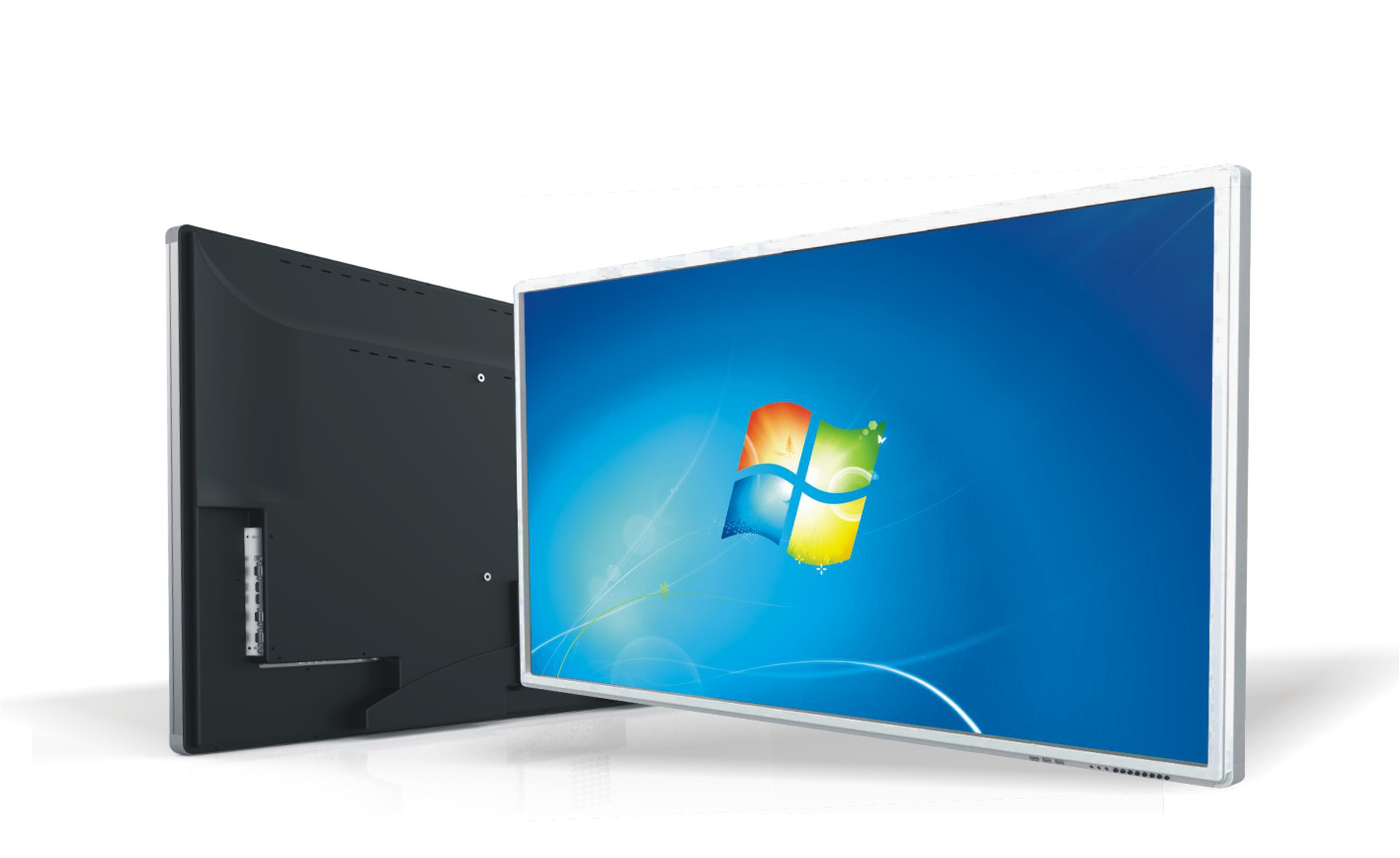

98 Inch Full HD Multi-Point Touch All in One PC Smart TV for
Interactive
All in one Panel PC 32 inch 42 in 43 inch 50 inch 55 inch 65 inch
70 inch 75 inch 84 inch 98 inch for Classroom/ Conference/ etc
Dual Operation system Windows 7 professional + Android 4.2.2
10 Touch Point IR touch screen vandal proof
Basic specification:
1. Technical index of Display
| Index | Parameter |
| Panel | Screen Size | 98 inch |
| Panel type | LCD |
| Interface | Dual LVDS 8bit |
| Backlight type | WLED |
| Display area size | 2300.7mm ( Diagonal) |
| Appearance size | 2600*1630*160mm |
| Resolution | 3840×2160★ |
| Pixel spacing | 1.2405mm×1.2405 ★ |
| Dynamic contrast | 6000:1 ★ |
| Brightness | 500cd/m2 ★ |
| Display scale | 16:9 |
| Visual angle | View Angle Free(R/L 178(Typ.),U/D 178(Typ.)) |
| Response time | 6ms(Try,on/off) |
- Technology index of touch control device
| Index | | Parameter |
| Function index | Touch panel size | 98inch matches with display device ★16:9 |
| Touch method | 10 points capacitive touch |
| Thickness of cover glass | 3mm |
| Total thickness | 4.75±0.3 |
| Resolution | ≥4096×4096 ★ |
| Response speed | 10ms |
| Reported rate | 100HZ |
| Mechanical function | Input method | Hand writing or pen |
| Touch times | Durable single-point≥30 million times |
| The smallest diameter of touch object | 8mm |
| Explosion-proof | 227g±2g, 100cm, No damage after the impact at the central area for once. ★ |
| Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
| Optical index | Transmittance | ≥85% |
| working environment | -10-60℃,20-85RH |
| Electrical characteristics | Working voltage | Typical value+5VDC,Allowance range+4.75v~+5.25v |
| Power supply | USB bus |
| Interface | USB |
| Control driver | IC solution | ILI2511 |
Features:
ZCK-133TM are industrial-grade 13.3'' TFT LCD with LED
backlightflat panel monitor with an Al-Mg front panel, a modern
appearance, and one of the most competitive prices for 13.3'' LCD
with LED backlight monitor on the market. The ZCK-133TM are also
extremely light and thin, and provides many industrial-grade
features such as a stainless steel chassis, VESA mounting
flexibility, and more. The ZCK-133TM are especially suitable for
industrial PCs such as IP65. This combination leads to an extremely
reliable and tough system, ready to operate in a wide variety of
industrial applications.
Competitive advantages:
1. 22 years' experience in designing and manufacturing touch
solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to
customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV
ceramic ink
Delivery time:
Sample: 10-20 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18-25working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before
delivery.
.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production
lines,and 100% aging testing before packaging.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity
is sizable.
Applications:
Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising
player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch
table,
POS,Restaurant menu,ATM etc.
Product production drawing:
