19 inch all in one touch screen for Commercial Touch Monitors

    Buy cheap 19 inch all in one touch screen for Commercial Touch Monitors from wholesalers

    Buy cheap 19 inch all in one touch screen for Commercial Touch Monitors from wholesalers
    • Buy cheap 19 inch all in one touch screen for Commercial Touch Monitors from wholesalers

    19 inch all in one touch screen for Commercial Touch Monitors

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-2910
    Certification : CE, RoHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 40K per month
    Delivery Time : 15-18days
    • Product Details
    • Company Profile

    19 inch all in one touch screen for Commercial Touch Monitors

    19 inch all in one touch screen for Commercial Touch Monitors

    Basic specification:

    1Size19 inch
    2Total thickness2.4mm
    3Outline of Cover Lens421*346±0.2mm
    4Outline of ITO Sensor393.62*320.34±0.3mm
    5Viewing Area377.32*302.06±0.3mm
    6Active Area380.32*305.06±0.3mm
    7InterfaceUSB
    8Input voltage5V
    9Response time10ms
    10Report rate100 HZ
    11Input methodHand writing or capacitive pen
    12Transmittance﹥85%

    Features:

    • Projected Capacitive touch screen
    • Customization
    • 3.5 inch to 65 inch(More large sizes products are developed now)
    • Multi touch point
    • OS support:Windows 7/8/10,Android,Linux,XP,WCE
    • USB/IIC port
    • Low MOQ

    Development process

    • Receive customer's technical files, including PCAP drawing, LCD specification.
    • Recommend standard products or customize products based on customer's requirements.
    • Offer engineering drawing for confirmation and fill in project kick-off form.
    • Make samples according to the confirmed drawing.
    • Debug the samples based on the information on kick-off form, keep the FW.
    • Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
    • Pilot production.
    • Mass production

    Delivery time:

    Sample:

    10-15 working days


    Mass production:

    1.Small sizes(smaller than 12.1 inch): 18 working days.

    2.Large sizes(larger than 12.1 inch):20-25 working days.


    Applications:

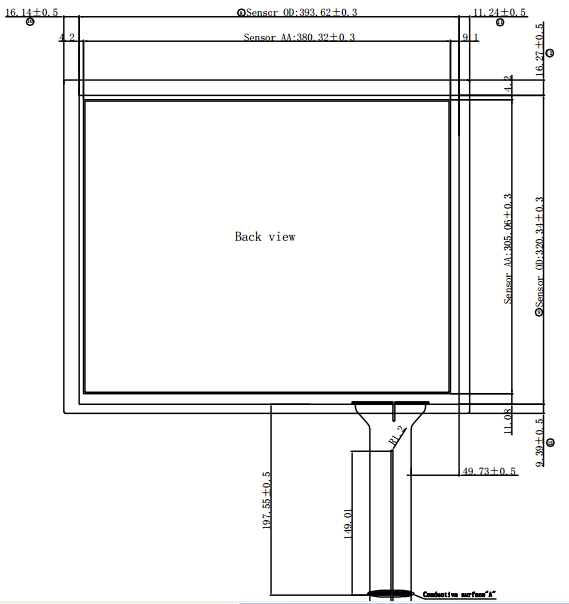

    Engineering drawing:
