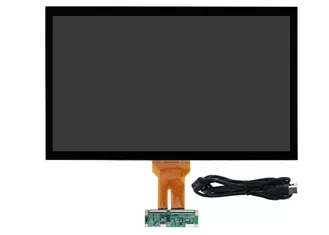

LCD Capacitive Touch 300nits 10Inch Tft Display WLED Backlight

10.1" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, touchscreen On-Cell Touch.

It features an operating temperature range of -10 ~ 60°C, a storage temperature range of -20 ~ 70°C. It's general features are summarized as following: Portrait type, WLED Backlight. Based on its features, we recommend that this model be applied to Pad & Tablet etc.

Brand A grade LCD panel

Diagonal Size 10.1inch Type a-Si TFT-LCD, LCM

Pixel Format 1280(RGB)×800 [WXGA] 150PPI Configuration RGB Vertical Stripe

Active Area 135.36(H)×216.576(V) mm

Outline Dim.142.32(H)×229.25(V) ×4.7(D) mm

Luminance 300 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM)

View Direction Symmetry Response Time 10 (Typ.)(Tr+Td)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode FFS, Normally Black, Transmissive

Support Color 16.7M 60% NTSC Light Source WLED [6S4P], 30K hours, W/O Driver

Weight 165g (Typ.) Designed For Pad & Tablet

Frame Rate 60Hz Touch Panel On-Cell Touch

Interface Type MIPI(4 data lanes), 42 pins Connector Power Supply 1.8/3.3V (Typ.)(VDDI/VCI)

Environment Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

1. Providing Touch Panel Since 1999

As a manufacturer, we provide customized touch panels, including 4-wire resistive touch panel, 5-wire resistive touch panel, capacitive touch panel, digital touch panel etc. Mostly, we are able to offer touch panel solutions in a short time.
Currently, we have been supplying touch panels to clients domestic and abroad. Samsung and Nintendo are two well-known companies of them.

*Company profile*

Established in 1999, Touch-China is an environmental-friendly enterprise engaged in developing and manufacturing Capacitive touch panel and optical bonding products.

Touch-China has the headquarter in Shenzhen and 60000m2 factory in Fujian province, totally 600 employees.
Equipped with advanced machines and staffed with strong R&D team, Touch-China is always grasping the pulse of the market, products range from 7 to 86 inch, and they are widely used in the automobile, Kiosks, POS, industrial, medical, finance, educational and new retailing field.

Touch-China gets the certificates of ISO9001:2008&ISO/TS16949:2009. Obeying the priciple of honesty, the idea of double win, and taking quality as the priority, Touch-China has been recognized by domestic and overseas customers and gains long-term cooperation.

*Development history*

1.1999-2005: Established in Guangzhou in 1999, main products: digital and resistive touch panels.
2. 2008-2010: Branches established in Xiamen, Shanghai and HongKong.
3. 2011-2013: Heaquarter moved Shenzhen. Two factories were established to expand production capacity.
4. 2013-2014: 60000m2 new own-factory set up in Fujian.
5. 2014-2015: ISO/TS16949:2009 certificate.
6. 2016-2017: optical bonding technology and large size touch panel more than 43’’ put into mass production
7. 2019: Touch-China 20th Anniversary

*Company advantages*

1. 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink
