    262K Touch LCD Module Projected Capacitive 7.0 Inch All In One

    Ask Lasest Price
    Brand Name : Touch-china
    Model Number : ZCC-XXXX
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100K / month
    Delivery Time : 5-10 working days
    Certification : CE/ROHS/FCC/CCC
    • Product Details
    • Company Profile

    262K Touch LCD Module Projected Capacitive 7.0 Inch All In One

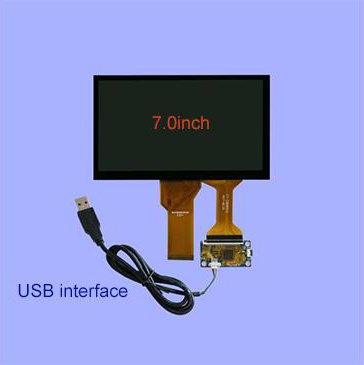

    USB Interface 7.0 Inch All In One 262K LCD Touch Module Projected Capacitive


    Applications


    Touch-Function ProductsLCD Module
    Consumer DevicesMobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.
    Automotive, Medical, IndustrialIndustrial Controls, Equipment Panels, Medical Device, GPS Navigation, Rearview Mirror Camera, etc.
    House-hold Electronics, Financial, Entertainment System, Office EquipmentPOS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.

    ◆◆◆ Main features

    ◆ Capacitive Multi touch Technology, good touching-accuracy,faster sensor;

    ◆ Popular Outer shape;

    ◆ Long-life design,continued working time more than 30,000 hours;


    Bezel Area157.08(H)×89.39(V) mmTreatmentHard coating (3H), Reflection 4.0% (Max.)
    Luminance250 cd/m² (Typ.)Contrast Ratio500:1 (Typ.) (TM)
    View Direction6/12 o'clockResponse Time10 (Typ.)(Tr+Td)
    Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Support Color262K/16.7M 50% NTSCLight SourceWLED [3S8P] , 30K hours , W/O Driver
    Weight216g (Typ.)Designed For
    Frame Rate60HzTouch PanelPCAP, Air Bonding
    Interface TypeParallel RGB (1 ch, 6/8-bit) 50 pins FPC
    Power Supply3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE)
    EnvironmentOperating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

    A 7.0" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, touchscreen PCAP, Air Bonding. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C. It's general features are summarized in the following: With Touch, WLED Backlight, U/D,L/R Reverse, 6/8 bit . Based on its features, recommend that this model be applied to commercial/Industrial etc.


    Detail Makes Difference


    Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.


    Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.
