10.1 Inch PCAP touch panel + TFT with optical bonding
Optical bonding technology: Optical bonding technology is using optical glue TP assembly LCD
and touch panel together without air. It's different from
traditional adhesive bonding products. For traditional adhesive
bonding products, double sided adhesive is pasted around four
edges, there is still air gap between touch panel and LCD. For
optical bonding products, there is glue the whole surface of the
LCD. Dust and fog can't go inside. And the display effect will be
great.
Features of optical bonding product:
1.Since there is no gap between LCD and touch panel after assembly,
dust and fog can't go inside the module.
2.There will be low interference of LCD to touch panel.
3.Vivid and clear crystal display performance than ordinary bonding
method.
4.Improved hardness, vibration resistance of TFT module
Description Of Touch Panel: Capacitive Touch Panel is to use the working current of induction
of human body.The operational principle of the projected capacitive
touch panel: There are two layers of the ITO layer under the
surface of glass. This ITO layer respectively forms the electric
field of X axis and Y axis, which can keep balance by crossing the
surface of the class. Once the fingers approach the glass surface,
the fingers and the electrode X axis or Y axis will form a new
electric field, which can make the local capacitance change. Then
the controller will determine the location based on capacitance
changes.
Advantages of Touch-China:
1. We have 23-year experience in designing and manufacturing touch
panels.
2. We have a strong research team for both software and hardware
and provide before and after-sale service.
3. We cooperate with excellent customer and suppliers.
4. We have long-term cooperation with excellent IC suppliers all
over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile
are in a leading position in touch panel industry.
LVDS Interface Pin Define:
CN1 socket(Module size):FI-X30HL (JAE)
Pin NO. | Symbol | Signal |
1 | RXO0- | Pixel data |
2 | RXO0+ | Pixel data |
3 | RXO1- | Pixel data |
4 | RXO1+ | Pixel data |
5 | RXO2- | Pixel data |
6 | RXO2+ | Pixel data |
7 | GND | Ground |
8 | RXOCLK- | Pixel clock |
9 | RXOCLK+ | Pixel clock |
10 | RXO3- | Pixel data |
11 | RXO3+ | Pixel data |
12 | RXE0- | Pixel data |
13 | RXE0- | Pixel data |
14 | GND | Ground |
15 | RXE1- | Pixel data |
16 | RXE1+ | Pixel data |
17 | GND | Ground |
18 | RXE2- | Pixel data |
19 | RXE2+ | Pixel data |
20 | RXECLK- | Pixel clock |
21 | RXECLK+ | Pixel clock |
22 | RXE3- | Pixel data |
23 | RXE3+ | Pixel data |
24 | GND | Ground |
25 | NC | Do not connect |
26 | NC | Do not connect |
27 | NC | Do not connect |
28/29/30 | VDD | Power Supply Input Voltage 5V |
Product Specification of Optical Bonding Touch Module
Items | Parameters |
LCD Screen Size | 10.1 inch |
Aspect ratio | 4:3 |
Resolution | 1280×1024 |
Visible Area | H)337.92mm×(V)270.336mm |
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
Contrast Ratio | 1000:1 |
Response Time | 3.5/1.5 (Typ.)(Tr/Td) ms |
Colors D | 8Bit 16.7M , 72% NTSC |
Scanning Frequency | 60Hz |
Interface | LVDS(See 1.2 for details) |
Operation Voltage | 5v |
Back light Source | WLED |
LCD | BOE |
Operating Lift of backlight | Min. 30K hours |
Operation Voltage | 37.7V~44.2V (for reference) |
Operation Current | Typ current:60ma |
BLU Power consumption | Max. 10.6W(for reference) |
Touch Screen Type | 10 point G+G capacitive touch panel |
Touch Mode | Finger or capacitor pen |
Response Speed | 10ms |
Reported Rate | 100Hz |
Resolution | ≥4096×4096 |
Touch Times | Durable single-point≥30 million times |
Interface | USB |
Working Voltage | Typical value+5VDC |
Glass Thickness | Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm) |
Surface Treatment | NO |
Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
Transmittance | ≥85% |
Bonding Way | Optical bonding |
Bonding Material | OCA |
Thickness | 0.175mm |
Modele Size | (W)421mm×(H)346mm×(T)14.8mm |
Net Weight | 1.98KG |
Working Temperature | 0℃~+50℃ |
Storage Temperature | -20℃~+60℃ |
Working Humidity | ≤85%RH(non-condensing) |
Storage Humidity | ≤85%RH(non-condensing) |
.

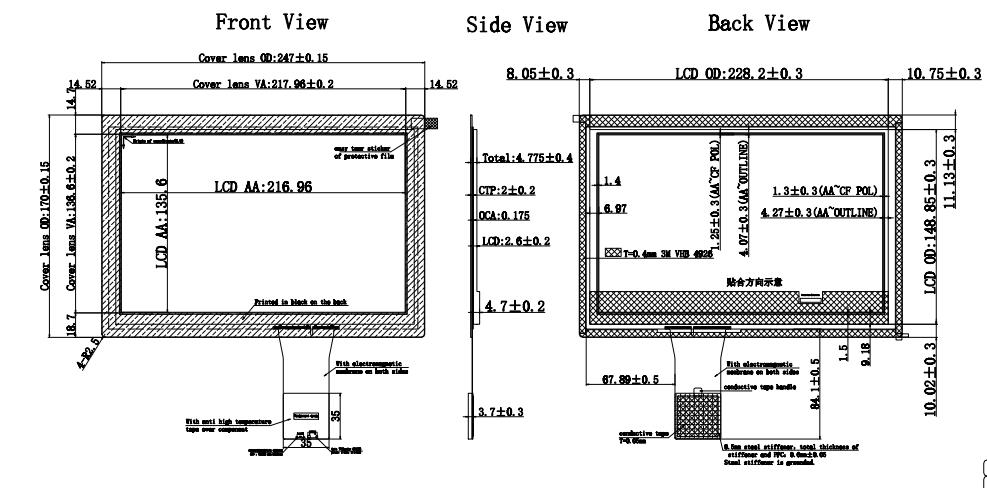

Touch Module Drawings:
