    USB Digital Signage Capacitive Touch Screen Panel , 10 Point Touch Screen

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-4429V1
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 15K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    USB Digital Signage Capacitive Touch Screen Panel , 10 Point Touch Screen

    USB Digital Signage Capacitive Touch Screen Panel , 10 Point Touch Screen

    Product Specification:

    Size:

    27inch

    Total thickness:

    4.3±0.3mm

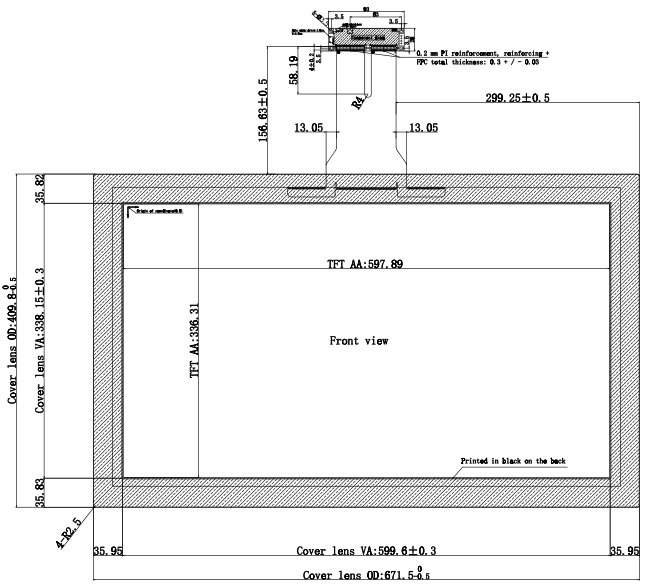

    Outline of Cover Lens:

    671.5*409.8±0.5mm

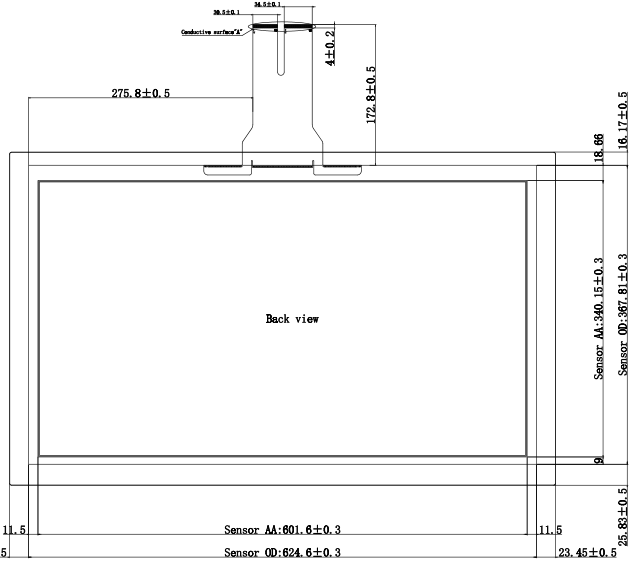

    Outline of ITO Sensor:

    624.6*367.81±0.5mm

    Viewing Area:

    599.6*338.15±0.3mm

    Active Area:

    601.6*340.15±0.3mm

    Cover glass thickness:

    1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm(optional)

    Cover glass treatments:

    AG, AR, AF, AE(optional)

    CTP interface:

    USB

    Operating system:

    Win7, Win8, Win10, WCE, Android, Linux, XP

    Working temperature and humidity

    -20°C~70°C,20~85% RH, non-condensing

    Storage environment and humidity :

    -30°C~80°C, 20~85% RH, non-condensing

    Transparency

    85%

    Response time:

    <10ms

    ESD Air discharge:

    8KV

    ESD Contact discharge:

    4KV

    Pen hitting life:

    ≥10,000,000/point

    Pen sliding Durability:

    ≥500,000 times

    Finger Touch life:

    ≥35,000,000 times

    Certifications:

    CE, FCC, Rohs

    Aspect ratio:

    16:9

    Report rate:

    100HZ

    Input method:

    Finger or capacitive pen

    Warranty:

    1 Year


    Custom Solution:
    Projected capacitive touch panel and cover glass surface treatment.
    P-Cap is constructed from two layers of ITO glass which are etched to leaved a grid pattern of X and Y line elements.
    Customize the entire touch solution with the pattern etched according to different touch IC specifications.
    Customize the cover glass with different masking and surface coating solutions for varieties.

    Typical Application:

    • Self-service Terminal equipment

    • Vending machine

    • Indoor and Outdoor KIOSK

    • Gaming Machine

    • Multi Touch Table

    • POS

    • Interactive digital signage

    • Education E-white boards

    Delivery Time:

    • Samples in stock: 1~3 working days

    • Customized project: 10~15days for samples

    • Mass production: 10~18days
