bank information Kiosk 14 inch Touch Panel
with interactive touch
General specification:
| Size | 14 inch |
| Total thickness | 2.4±0.3mm |
| Outline of Cover Lens | 335*200±0.3mm |
| Outline of ITO Sensor | 330*195±0.3mm |
| Viewing Area | 311*176±0.3mm |
| Active Area | 314*179±0.3mm |
| Interface | USB |
| Input voltage | DC5V |
| Response time | 10ms |
| Panel color | Black |
| Transmittance | ≧85% |
| Input method | Hand writing or capacitive pen |
| Package list | 14 inch touch panel,controller board and USB cable |
Note:
Note 1: In order to make a touch panel work normally, please make
sure that the host device is grounded.
Note 2: All environmental characteristics listed above should be
less than 1 atmospheric pressure.
Note3:The touch panel must be assembled with LCD panel by VHB or
other materials, thecontrol board should be fixed on LCM bezel or
other mechanical parts of the system and then be grounded; In ESD
test, the touch panel should work normally and there should be no
damage to the appearance, when no static electricity discharges.
However, irregular changes like display flickering are acceptable
when static electricity discharges.
Note4: The touch panel may be damaged functionally or work unstably
if the panel are not be grounded though your system to earth.
Note5: In order to make a touch panel work normally, power supply
or power adapter has to conform to IEC 62684.

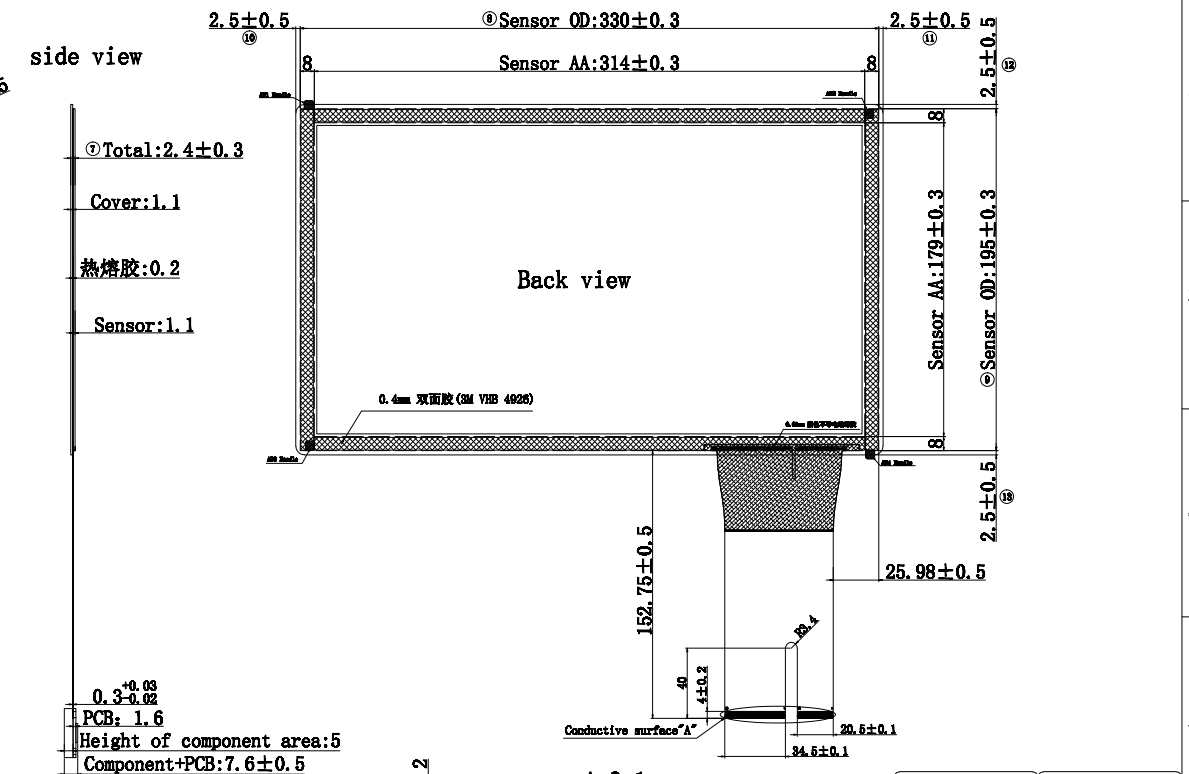

Product drawing:
Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 65 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port
7. Low MOQ
8. Can be used for Kiosk,Karaoke,All in one,Digital Signage,Tablet
pc,Advertising player,Education Whiteboard,Medical
device,Industrial pc panel,Multi-touch table,POS,Restaurant
menu,ATM etc.
Competitive advantages:
a. We have 23-year experience in designing and manufacturing touch
panels.
b. We have strong research team for both software and hardware and
provide before and after-sale service.
c. We cooperate with excellent customers and suppliers.
d. We have long-term cooperation with excellent IC suppliers all
over the world.
e. We have good guarantee for product quality and lead time.
f. Our touch panels of large sizes and touch panels for automobile
are in a leading position in touch panel industry.
QA:
Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of
customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
