    19 inch 4:3 High Durability Capacitive Multi Touch Screen Anti - Interference Ability

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-4616
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    19 inch 4:3 High Durability Capacitive Multi Touch Screen Anti - Interference Ability

    19 inch 4:3 High Durability Capacitive Multi Touch Screen Anti-Interference Ability


    Product Specification:

    Size:

    19 inch

    Total Thickness:

    2.4±0.2mm

    Outline of Cover Lens:

    421*346±0.1mm

    Outline of ITO Sensor:

    393.62*320.34±0.2mm

    Viewing Area:

    377.32*302.06±0.2mm

    Active Area:

    380.32*305.06±0.3mm

    TP Structure:

    G+G

    Controller:

    ILITEK, WEIDA, EETI, Silicon Works etc.(Optional)

    Cover glass thickness:

    1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)

    Cover glass treatments:

    AG, AR, AF, AE (Optional)

    CTP interface:

    USB

    Operating system:

    Win7, Win8, Win10, WCE, Android, Linux, XP

    Working temperature and humidity:

    -20°C~70°C,20~85% RH, non-condensing

    Storage environment and humidity :

    -30°C~80°C, 20~85% RH, non-condensing

    Transparency

    85%

    Response time:

    <10ms

    ESD Air discharge:

    8KV

    ESD Contact discharge:

    4KV

    Pen hitting life:

    ≥10,000,000/point

    Pen sliding Durability:

    ≥500,000 times

    Finger Touch life:

    ≥35,000,000 times

    Certifications:

    CE, FCC, Rohs

    Aspect ratio:

    4:3

    Report rate:

    100HZ

    Input method:

    Finger or capacitive pen

    Warranty:

    1 Year


    Capacitive Touch Screen Features:


    • No ghost after the first calibration, drift-free

    • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable

    • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems

    • Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct

    • Free drive, plug and play

    • Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments

    • Wear resistance, long life, low maintenance costs

    Delivery Time:

    • Samples in stock: 1~3 working days

    • Customized project: 10~15days for samples

    • Mass production: 10~18days


    FAQ:


    • Q: When can I get the price?

    • A: We usually quote within 24 hours after we get your inquiry.

    • Q: Can we make customized products?

    • A: Yes, we customize touch panel from 3.5”-86”.

    • Q: What are your lead times?

    • A: Generally, 1-3 days for samples in stock, 10-15 days for customized samples.

    • Q: What's the payment?

    • A: T/T


    Application:


    • Touch Screen All in one Computers

    • Touch Screen laptop

    • POS Machine

    • Industrial Control industry

    • Touch Monitor

    • Information Kiosks

    • Gaming, Lottery ect

    • Multimedia marketing

    • Banking / Fanancial System

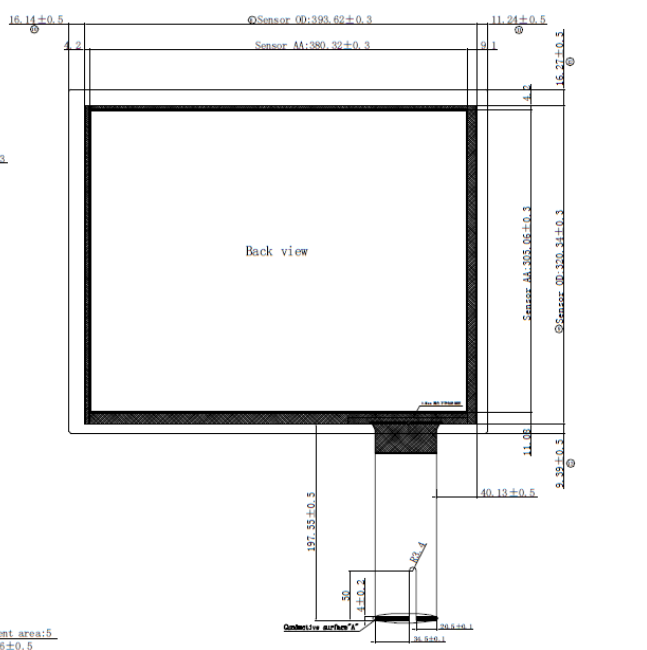

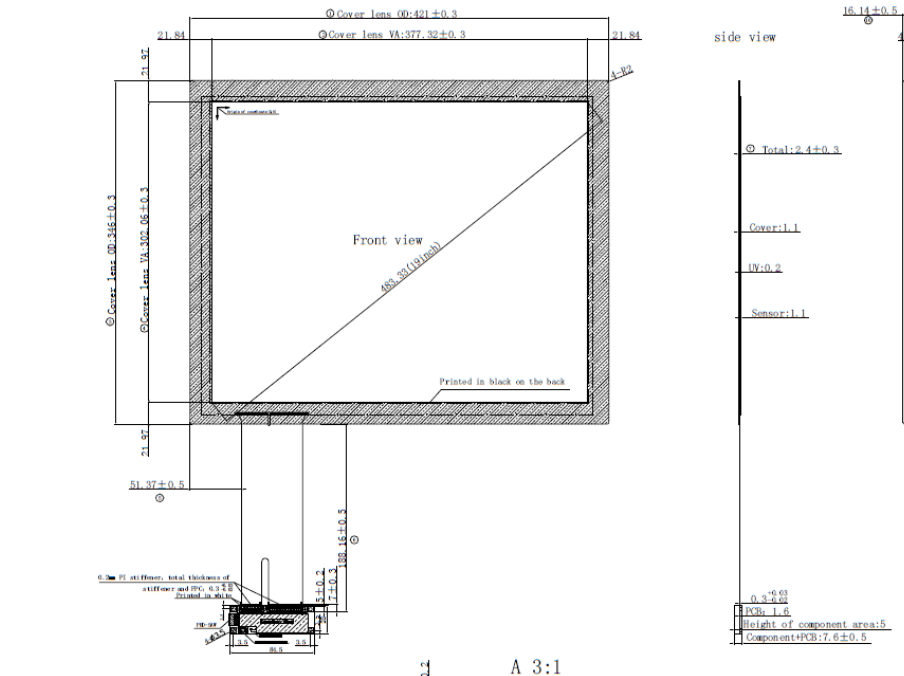

    Technical Drawings:
