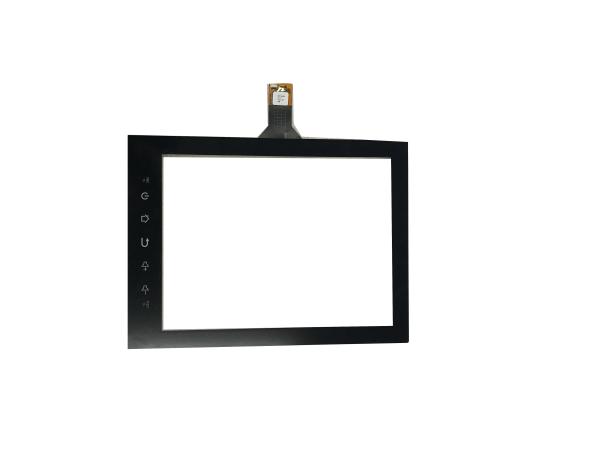

    9.7 inch High Durability Capacitive Multi Touch Screen GPS P+G Godix GT911

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-5438
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Supply Ability : 20K pcs / month
    Delivery Time : 15-18 days
    • Product Details
    • Company Profile

    9.7 inch High Durability Capacitive Multi Touch Screen GPS P+G Godix GT911

    9.7 inch High Durability Capacitive Multi Touch Screen GPS P+G Godix GT911

    Product Specification:

    Size:9.7 inch
    Total Thickness:1.475±0.2mm
    Outline of Cover Lens:242*179.3±0.1mm
    Outline of ITO Sensor:238.9*175.7±0.2mm
    Viewing Area:197.7*148.5±0.2mm
    Active Area:198.7*149.5±0.3mm
    TP Structure:P+G
    Controller:Godix, ILITEK, WEIDA, EETI, (Customized)
    PET thickness:1.1mm,1.8mm,2mm,3mm, (Customized)
    PET treatments:AG, AR, AF, AE (Customized)
    CTP interface:IIC
    Operating system:Win7, Win8, Win10, WCE, Android, Linux, XP
    Working temperature and humidity-20°C~70°C,20~85% RH, non-condensing
    Storage environment and humidity :-30°C~80°C, 20~85% RH, non-condensing
    Transparency≥85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, FCC, Rohs
    Aspect ratio:16:9
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Warranty:1 Year

    Projected Capacitive Touch panel:


    • Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
    • There is no air gap between layers like in a resistive touch panel.
    • The patterns on the two parallel ITO layers form a grid of capacitors.
    • The electric fields of these capacitors are projected through the top layer of glass.
    • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
    • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
    • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

    Delivery Time:

    • Samples in stock: 1~3 working days
    • Customized project: 10~15days for samples
    • Mass production: 10~18days

    FAQ:


    Q. Are you a factory or trading company?

    A: We are a factory.

    Q. Does your products have CE&Rohs certificates?

    A: Yes.

    Q. What’s the shipping method?

    A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

    Q. What’s the payment methods?

    A: T/T, 30% deposit before production, the balance before shipment.

    Q. What size of touch screen can you manufacture?

    A: 3.5” to 65”, the bigger size are researching and developing.

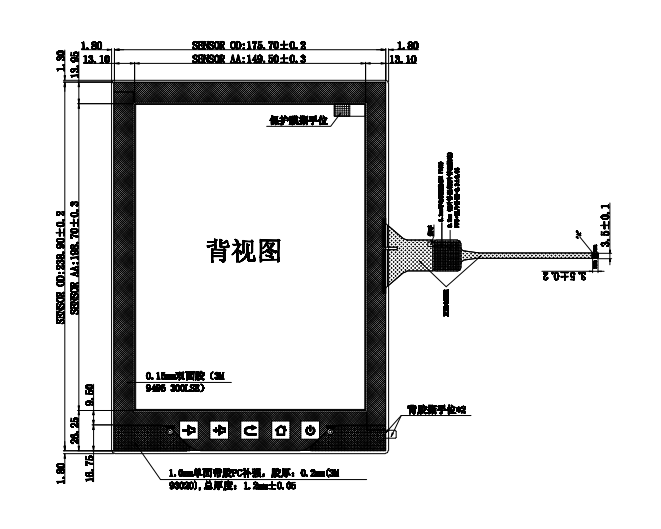

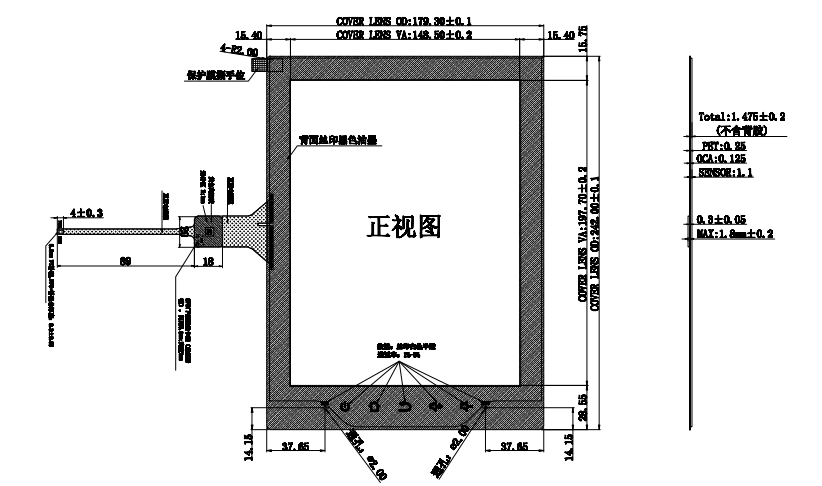

    Drawings:



    Application:


    -- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc

    -- Advertising player -- Education Whiteboard -- Medical device

    -- Industrial PC panel -- Multi-touch table -- POS

    -- Restaurant menu -- ATM
