2.5D Cover Glass 10.1 Inch Goodix Capacitive Touch Screen
Description
The touch panel is with 2.5D cover glass, it's different from the
oridinary cover glass. The edge of the touch panel is more smooth,
which makes the touch panel have a better look.
Parameters of the touch panel
| Size: | 10.1inch |
| Total Thickness: | 2.7±0.2mm |
| Outline of Cover Lens: | 251.66*146.64±0.1mm |
| Outline of ITO Sensor: | 247.53*142.5±0.2mm |
| Viewing Area: | 221.6*125.78±0.2mm |
| Active Area: | 222.6*126.78±0.3mm |
TP Structure: | G+G |
| Controller: | Goodix 928 |
| Cover glass thickness: | 2mm |
| Cover glass treatments: | AG, AR, AF (Optional) |
| CTP interface: | I2C |
| Operating system: | Android, Linux |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, RoHS, REACH |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Ball drop test standard | 227g, 100cm for 3 times |
| Warranty: | 1 Year |
Reliability test conditions
High temperature: 70℃, 120H
Low temperature: -20℃, 120H
Thermal shock: -20℃(0.5 hour)- 70℃(0.5 hour)by 50 cycles
Humidity resistance: 85%RH for 120 hours
Heat resistance: 80℃ for 120 hours
Cold resistance: -30℃ for 120 hours
Advantages of Touch-China
1. We have a strong RD and manufacturing team.
2. We have 20 year experience in touch panel field. We are
experienced to provide solutions to various touch panels.
3. We have good resources of the raw materials, which make us
capable of delivering the goods at stable cost and on time.
4. We can provide adhesive and optical bonding solution. Customer
can provide the LCD or we can buy the LCD directly.
Application of touch panels
FAQ
1. What’s you MOQ?
Re: For touch panel less than 10.1”, the MOQ is 200pcs. For touch
panel above 10.1”, the MOQ is 100pcs.
2. What’s your lead time?
Re: The lead time for both samples and mass production is 15 days.
3. What kind of sizes can you provide?
Re: We can provide touch panel from 3.5” to 86”.
4. How to deal with the defective touch panel after they are
shipped.
Re: First, we will make clear what the issue is. Usually the issue
can be solved by either remote testing or sending back
representative defective touch panels.

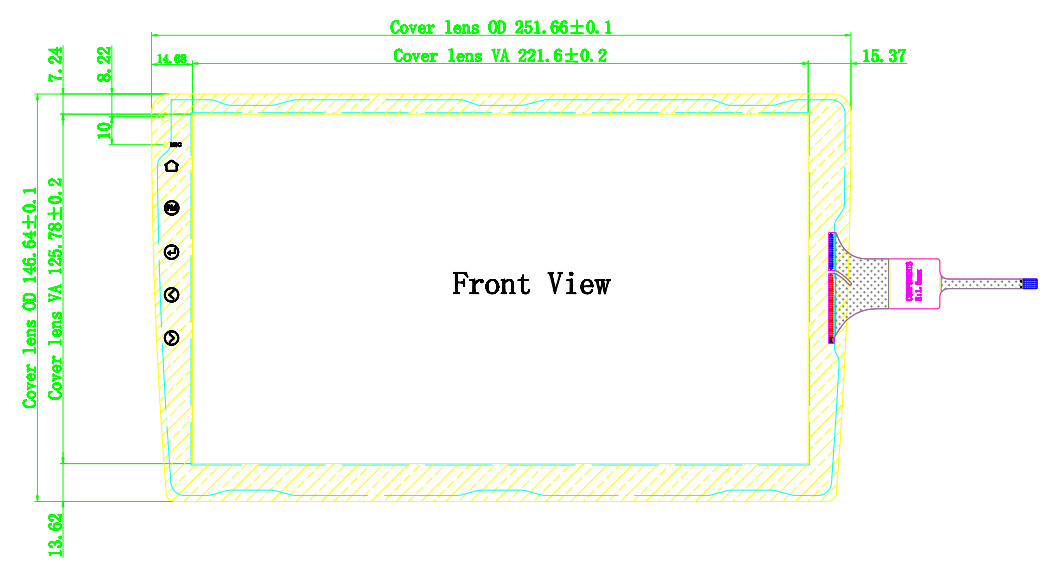

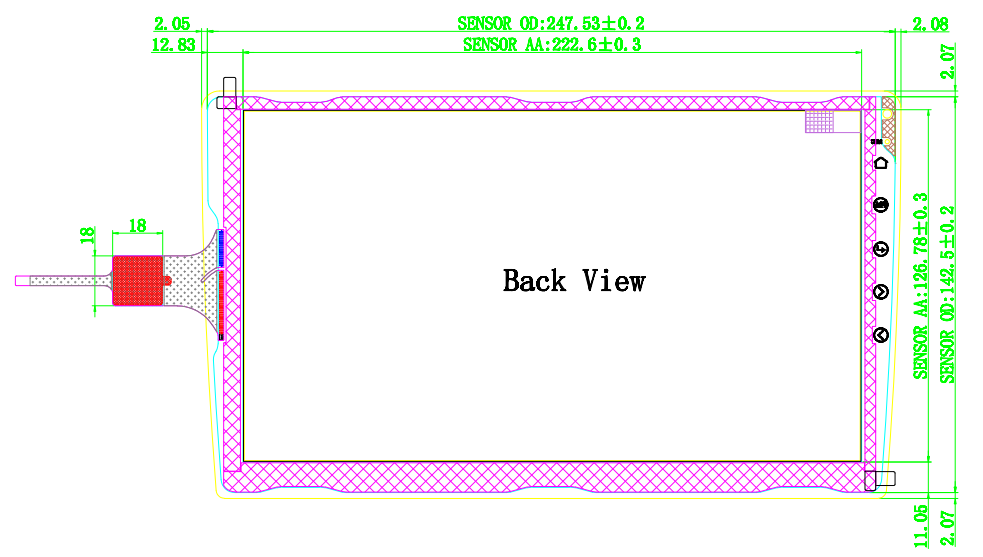

Engineering drawing
Package
Total 60pcs per package
