    Projected Capacitive Touch Panel used for 11.6" Flexible Touch Screen Display

    Ask Lasest Price
    Brand Name : Touch China
    Model Number : ZCC-5164
    Certification : CE,ROHS,FCC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Projected Capacitive Touch Panel used for 11.6" Flexible Touch Screen Display

    Projected Capacitive Touch Panel used for 11.6" Flexible Touch Screen Display


    Basic specification:


    Size11.6 inch
    Total thickness2.4±0.2mm
    Outline of Cover Lens272.12*159.5±0.2mm
    Outline of ITO Sensor268*157.5±0.3mm
    Viewing Area257.12*145±0.3mm
    Active Area258.72*146.6±0.3mm
    InterfaceUSB
    Input voltage5V
    Response time<10ms
    Report rate100 HZ
    Input methodHand writing or capacitive pen
    Transmittance﹥85%
    Package list11.6 inch Touch panel + USB controller board+ USB cable

    Capacitive touch screen Features:


    1. Response speed fast, smooth touch.
    2. Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
    3. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
    4. Precision-touch capacitive screen is using the body's current-sensing.
    5. Accuracy up to 99% proficient in writing, no break no drift.
    6. Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
    7. No ghost after the first calibration, drift-free.
    8. Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
    9. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
    10. Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.

    Applications:


    1. Vending machine
    2. POS terminals
    3. Financial - ATM & Bill Pay Kiosks
    4. Factory Automation
    5. Industrial Control
    6. Medical Equipment
    7. Retail Kiosks
    8. Mobile & Pad
    9. Auto Industry

    Delivery time:


    1. Samples in stock: 1~3 working days
    2. Customized project: 10~15days for samples
    3. Mass production: 10~18days

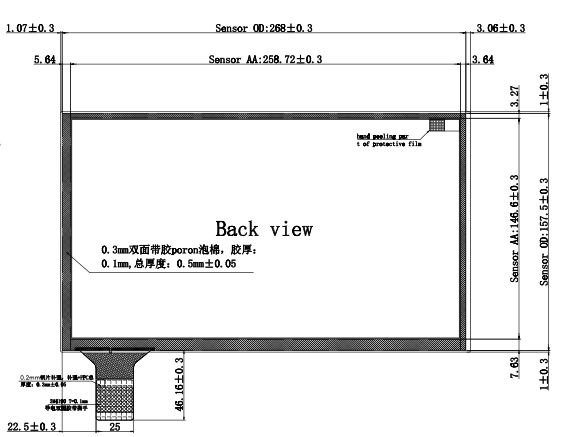

    Technical Drawing:


    Quality Projected Capacitive Touch Panel used for 11.6&quot; Flexible Touch Screen Display for sale
