PCAP Touch Panel 7 inch Narrow Margin and 2mm Cover glass Tempered
Basic specification:
| Size | 7 inch |
| Total thickness | 4.1±0.2mm |
| Outline of Cover Lens | 234*142±0.1mm |
| Outline of ITO Sensor | 233*141±0.2mm |
| Viewing Area | 223.72*125.26±0.2mm |
| Active Area | 224.72*127.28±0.3mm |
| Interface | IIC |
| Input voltage | 2.8~3.3V |
| Response time | 10ms |
| Report rate | 100 HZ |
| Input method | Hand writing or capacitive pen |
| Transmittance | ﹥85% |
| Package list | 7 inch Touch panel,controller board and USB cable |
Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 86 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port
7. Low MOQ
Applications:
Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising
player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch
table,
POS,Restaurant menu,ATM etc.
Competitive advantages:
1. 22 years' experience in designing and manufacturing touch
solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to
customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV
ceramic ink
Delivery time:(In the case of global epidemics, we will try our best to ensure
delivery speed)
Sample: 10-15 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 15-20 working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before
delivery.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production
lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for
certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity
is sizable.
Q:Does the product support customization?
A:Of course

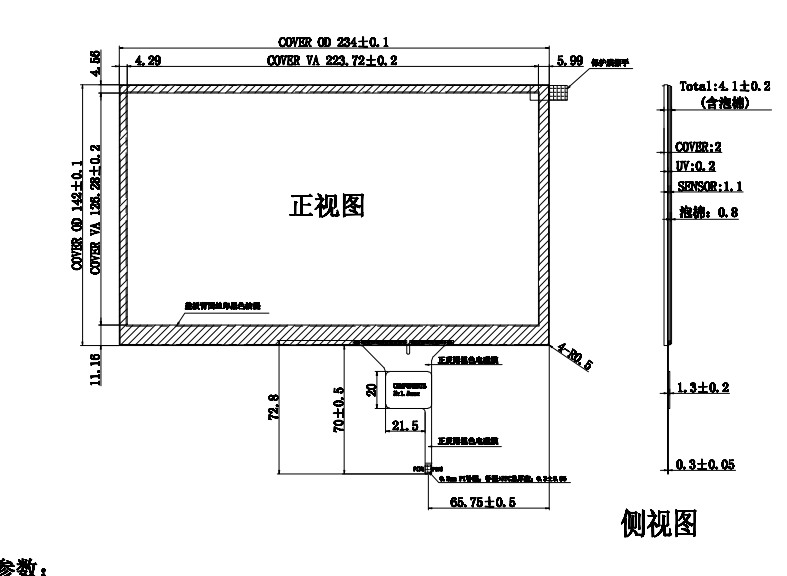

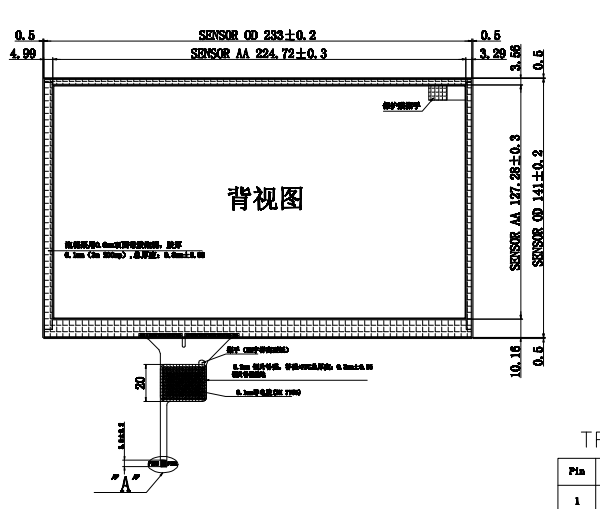

Technical Drawings:
Some of our great partners:
Cooperation with many large and internationally well-known
enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech,
KF, SMTC etc.

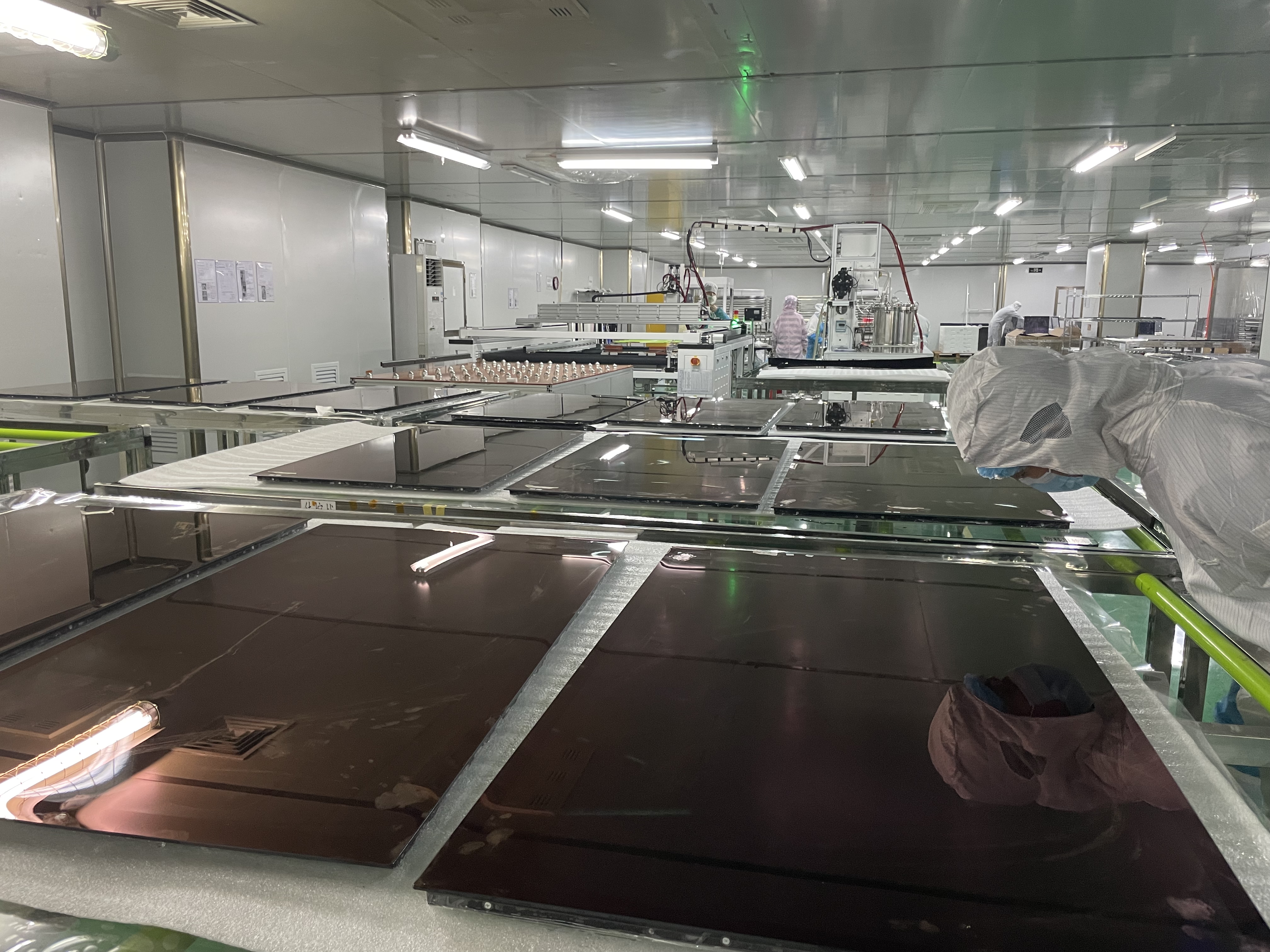

Product environment production drawing:
