10.1 inch G+G Projected Capacitive Touch Panel with IIC interface

    Buy cheap 10.1 inch G+G Projected Capacitive Touch Panel with IIC interface from wholesalers

    Buy cheap 10.1 inch G+G Projected Capacitive Touch Panel with IIC interface from wholesalers
    • Buy cheap 10.1 inch G+G Projected Capacitive Touch Panel with IIC interface from wholesalers
    • Buy cheap 10.1 inch G+G Projected Capacitive Touch Panel with IIC interface from wholesalers
    • Buy cheap 10.1 inch G+G Projected Capacitive Touch Panel with IIC interface from wholesalers

    10.1 inch G+G Projected Capacitive Touch Panel with IIC interface

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-3430
    Certification : ISO TS16949, Rohs
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 250K per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    10.1 inch G+G Projected Capacitive Touch Panel with IIC interface

    G+G 10.1 inch touch panel with IIC interface, 16:10 and customizable shape


    Basic Specification:


    1TypeProjected capacitive touch panel
    2Size10.1 inch
    3Total thickness2.93±0.2mm
    4Outline of cover lens229.46*149.1±0.2mm
    5Outline of ITO sensor227.86*147.5±0.2mm
    6Viewing area217.46*136.1±0.2mm
    7Active area218.46*137.1±0.3mm
    8InterfaceIIC
    9Touch point5 points
    10Transmittance>83%
    11Hardness>6H
    12ChipsetGoodix 928
    13Working environment-20-70℃, ≤85%RH
    14Storage environment-30-80℃, ≤85%RH

    Features:

    1. Response speed fast, smooth touch.
    2. Using the latest projection touch technology < 3mm touch faster than other touch screen 3-5ms.
    3. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
    4. Precision-touch capacitive screen is using the body's current-sensing.
    5. Accuracy up to 99% proficient in writing, no break no drift.
    6. Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
    7. No ghost after the first calibration, drift-free.
    8. Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
    9. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.

    FAQ:


    Q. Are you a manufacturer or a trading company?
    A: We are a manufacturer.


    Q. What is the delivery date for a sample?
    A: Usually about 1-3 days for inventory. And bulk order's delivery time is generally 10 to 15 days.

    Q. What's payment terms can you accpet?

    A: T/T in advance, or 30% as deposite,70% as balance before delivery.

    .

    Q. How do you control the quality ?
    A: We control the product quality by IQC,three tests on production lines,and 100% again testing before packaging. We have ISO 9001:2008 & TS 16949.

    Q. What's MOQ?
    A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.

    Q. Can you give us a favorable discount ?
    A: Of course, a favorable discount will be offered if the quantity is sizable.


    Application:

    1. Car nevigation
    2. Car DVD player
    3. Android tablet
    4. Car GPS Navigation Music Player
    5. Car DVD players gps
    6. Android car stereo
    7. Car Multimedia Player
    8. DVD GPS CD Bluetooth Audio

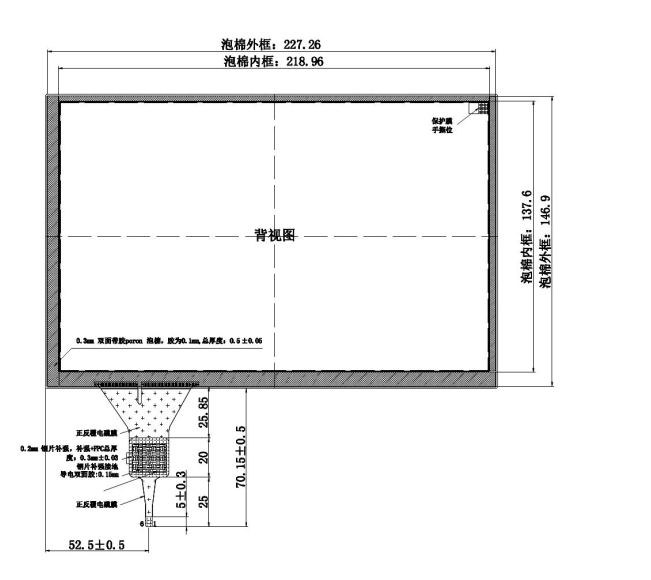

    Technical Drawing:
