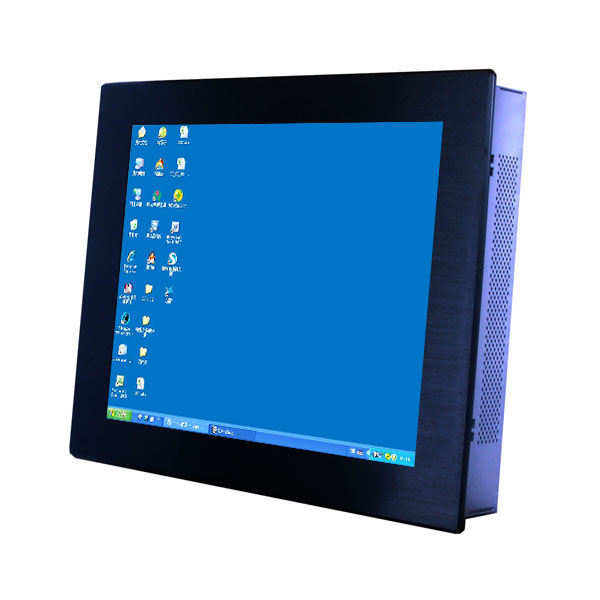

Stabilized Touch12.1 Inch Touch Panel 16:9 , Anti glare , durable
PCAP
Basic info:
| Size: | 12.1 inch |
| Total Thickness: | 2.4±0.2mm |
| Outline of Cover Lens: | 291*202.16±0.1mm |
| Outline of ITO Sensor: | 276*180.7±0.2mm |
| Viewing Area: | 262.32*164.4±0.2mm |
| Active Area: | 263..6*165.6±0.2mm |
TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, Silion works, EETI (Optional) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional) |
| Cover glass treatments: | AG, AR, AF, AE (Optional) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 4:3 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Advantages:
- Response speed fast, smooth touch.
- Using the latest projection touch technology <3mm touch faster
than other touch screen 3-5ms.
- Flat panel, more high-end atmosphere, eliminating infrared touch
screen surface with a groove edges are not allowed to shortcomings.
- Precision-touch capacitive screen is using the body's
current-sensing.
- Accuracy up to 99% proficient in writing, no break no drift.
- Completely dead 10-point touch really, any point can withstand more
than 50 million times touch.
- No ghost after the first calibration, drift-free.
- Explosion-proof and durable, complete physical steel
explosion-proof glass, scratch-resistant, anti-collision,
anti-radiation within the core capacitive touch ensure stable,
durable.
- Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac,
Android / Linux and other operating systems.
- Anti-interference ability, without the interference of light and
radiation, surface water / oil / dust can touch any place accurate
and correct.
- Free drive, plug and play.
- Intelligent automatic calibration, simple and easy to adapt to
internal / external use a variety of environments.
- Wear resistance, long life, low maintenance costs.
Delivery Time:
- Samples in stock: 1~3 working days
- Customized project: 10~15days for samples
- Mass production: 10~18days
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of
customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
Q: Can you accept paypal or escrow for sample order?if not, which
payment do you accept?
A: Sorry, Our company is not retailer,we are wholesaler.paypal or
escrow is not accept. As the payment terms, we prefer Bank
transfer.
Q: How many days will arrive to our country?
A: Based on our experience, as normal it takes about 3-5days will
arrive to your country.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.

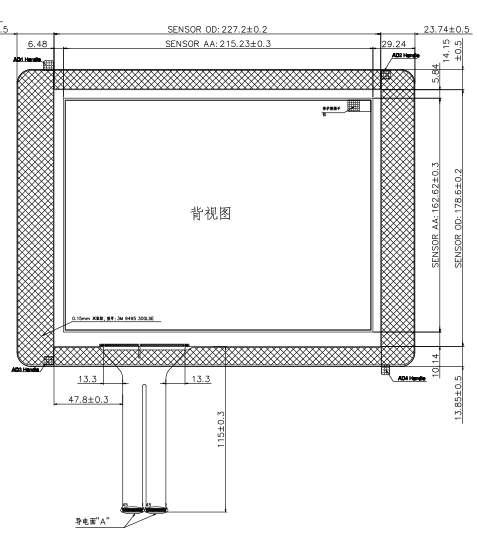

Technical Drawings:
Application:
Factory Automation
Industrial Control
Medical Equipment
Retail Kiosks
Auto Industry
POS terminals
Financial - ATM & Bill Pay Kiosks
