10.4“Capacitive Multi Touch Panel with IIC interface and
Explosion-proof film
Product Specification:
| Size: | 10.4inch |
| Total Thickness: | 1.95±0.2mm |
| Outline of Cover Lens: | 241*177.5+0.1mm |
| Outline of ITO Sensor: | 174.7*234.2±0.2mm |
| Viewing Area: | 157.8*210.5±0.2mm |
| Active Area: | 211.6*158.8±0.3mm |
TP Structure: | G+G |
| Controller: | Goodix |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized) |
| Cover glass treatments: | AG, AR, AF, AE (Customized) |
| CTP interface: | IIC |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Projected Capacitive Touch panel:
Projected capacitive touch panels are built with two parallel
layers of ITO but, but unlike the old and cheap resistive touch
panels, the ITO layers in a projected capacitive touch panel are
sealed between two sheets of glass by an optically clear adhesive.
- There is no air gap between layers like in a resistive touch panel.
- The patterns on the two parallel ITO layers form a grid of
capacitors.
- The electric fields of these capacitors are projected through the
top layer of glass.
- When the user places a finger near the top surface of the touch
panel, it couples with the electric fields.
- This coupling changes the capacitance of several of the capacitors
in the vicinity of the finger.
- An algorithm converts these changes in capacitance into a location
along the X and Y axes of the panel.
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of
customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
Q: How many days will arrive to our country?
A: Based on our experience, as normal it takes about 3-5days will
arrive to your country.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Advantages:
Capacitive touch technology.
Highest resolution, sensitive and fast response
Easy to install with LCD monitor
Dustproof and Waterproof maintenance free.
Touch screens can be built in specific dimensions requested by
clients in custom orders
Flexible interaction; waterproof presentation, Gloves touch,10mm
glass, replaceable cover glass and anti-interference presentation.

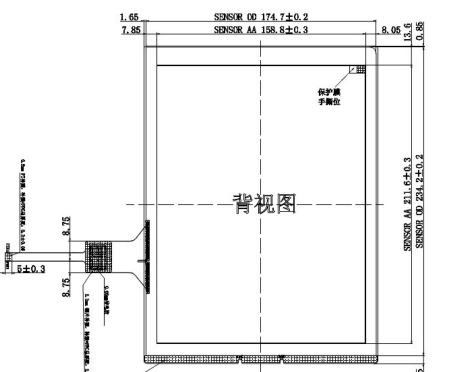

Technical Drawings:
