    Projective Capacitive Touch Screen with 15inch industrial touch screen for ATM

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-4611
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    Projective Capacitive Touch Screen with 15inch industrial touch screen for ATM

    Projective Capacitive Touch Screen with 15inch industrial touch screen for ATM


    Product Specification:


    Size:15inch
    Total Thickness:2.4±0.3mm
    Outline of Cover Lens:339.94*263.94±0.3mm
    Outline of ITO Sensor:321.4*247.38±0.3mm
    Viewing Area:305.1*229.1±0.3mm
    Active Area:308.1*232.1±0.3mm

    TP Structure:

    G+G
    Controller:ILITEK, WEIDA, Silion works, EETI (Optional)
    Cover glass thickness:1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)
    Cover glass treatments:AG, AR, AF, AE (Optional)
    CTP interface:USB
    Operating system:Win7, Win8, Win10, WCE, Android, Linux, XP
    Working temperature and humidity-20°C~70°C,20~85% RH, non-condensing
    Storage environment and humidity :-30°C~80°C, 20~85% RH, non-condensing
    Transparency85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, FCC, Rohs
    Aspect ratio:16:9
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Warranty:1 Year

    Advantages:


    • Response speed fast, smooth touch.
    • Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
    • Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
    • Precision-touch capacitive screen is using the body's current-sensing.
    • Accuracy up to 99% proficient in writing, no break no drift.
    • Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
    • No ghost after the first calibration, drift-free.
    • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
    • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
    • Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
    • Free drive, plug and play.
    • Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
    • Wear resistance, long life, low maintenance costs.

    Delivery Time:


    • Samples in stock: 1~3 working days
    • Customized project: 10~15days for samples
    • Mass production: 10~18days

    Product Application:


    • Self-service Terminal equipment
    • Vending machine
    • Indoor and Outdoor KIOSK
    • Gaming Machine
    • Multi Touch Table
    • POS machine
    • Interactive digital signage
    • Education E-white boards
    • Financial - ATM & Bill Pay Kiosks
    • Factory Automation
    • Industrial Control
    • Medical Equipment​

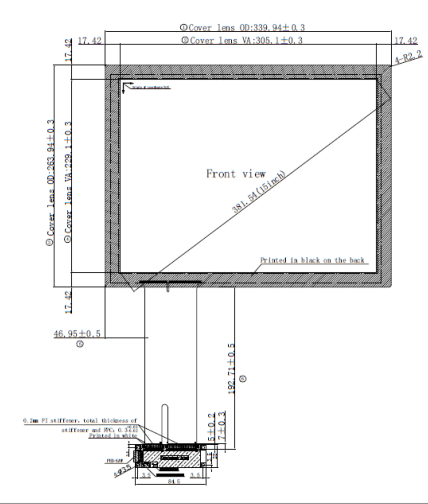

    Technical Drawings:
