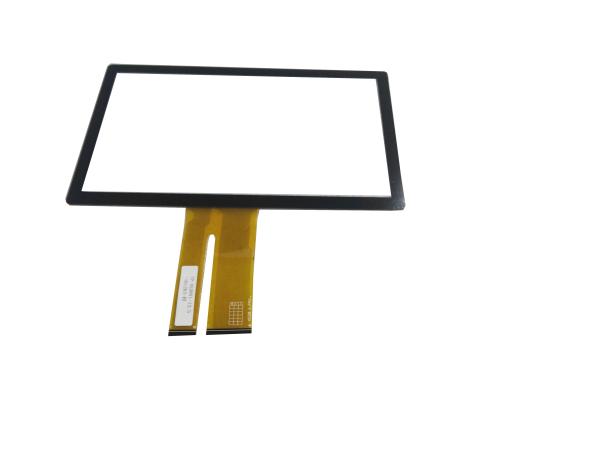

    12.5inch Industrial Touch Screen used for POS Touch Screen Monitor with G+G

    Ask Lasest Price
    Brand Name : Touch-China
    Model Number : ZCC-4528V1
    Certification : CE, Rohs, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 20K pcs / month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    12.5inch Industrial Touch Screen used for POS Touch Screen Monitor with G+G

    12.5inch Industrial Touch Screen used for POS touch screen monitor with G+G


    Capacitance touch screen description:


    Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment. When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

    Product Specification:

    Size:12.5inch
    Total Thickness:1.85±0.2mm
    Outline of Cover Lens:301.48*182.52±0.1mm
    Outline of ITO Sensor:297.48*178.52±0.3mm
    Viewing Area:277.48*156.52±0.2mm
    Active Area:278.48*157.52±0.3mm

    TP Structure:

    G+G
    Controller:ILITEK, WEIDA, EETI, Silicon Works etc.(Optional)
    Cover glass thickness:1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)
    Cover glass treatments:AG, AR, AF, AE (Optional)
    CTP interface:USB
    Operating system:Win7, Win8, Win10, WCE, Android, Linux, XP
    Working temperature and humidity:-20°C~70°C,20~85% RH, non-condensing
    Storage environment and humidity :-30°C~80°C, 20~85% RH, non-condensing
    Transparency85%
    Response time:<10ms
    ESD Air discharge:8KV
    ESD Contact discharge:4KV
    Pen hitting life:≥10,000,000/point
    Pen sliding Durability:≥500,000 times
    Finger Touch life:≥35,000,000 times
    Certifications:CE, FCC, Rohs
    Aspect ratio:16:9
    Report rate:100HZ
    Input method:Finger or capacitive pen
    Warranty:1 Year

    Capacitive Touch Screen Features:

    1. Response speed fast, smooth touch
    2. Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms
    3. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
    4. Precision-touch capacitive screen is using the body's current-sensing
    5. Accuracy up to 99% proficient in writing, no break no drift
    6. Completely dead 10-point touch really, any point can withstand more than 50 million times touch
    7. No ghost after the first calibration, drift-free
    8. Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable
    9. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems

    FAQ:

    • Q: When can I get the price?
    • A: We usually quote within 24 hours after we get your inquiry.
    • Q: Can we make customized products?
    • A: Yes, we customize touch panel from 3.5”-86”.
    • Q: What are your lead times?
    • A: Generally, 1-3 days for samples in stock, 10-15 days for customized samples.

    Typical Application:

    • Point-of-information kiosks
    • Vending and ticket sales
    • Electronic catalogs
    • Gaming, lottery, and amusement
    • Public pay phones
    • Multimedia marketing
    • Banking/financial transactions
    • Industrial control rooms
    • Computer-based training

    Shipment service


    FedEx, DHL, UPS, TNT, Aramex, Sea or Air shipment etc.


    Touch-China Service


    OEM/ODM are workable


    All of products can be customized according to customers' drawings, and with customer's brand.

    .

    If you no drawing or sample, please let me know some information, our engineer can help you to develop new items and make technical drawing .


    Assembly Services


    We can provide assembly services. We mainly manufacture touch screen, also can make optical bonding / tape bonding between touch screena and LCD display from 3.5~86inch.

    Technical Drawings:
